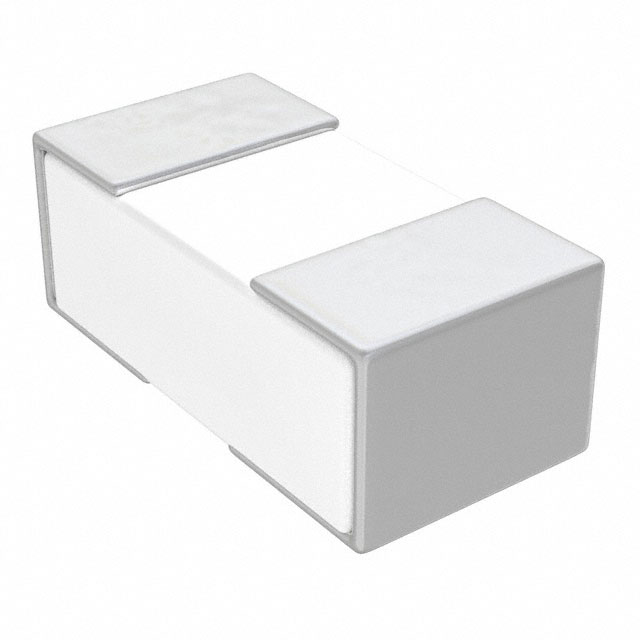

FIXED IND 3.4NH 380MA 550MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3640 Type Series Catalog

36401E3N4ATDF

Obsolete

TE Connectivity Passive Product

FIXED IND 3.4NH 380MA 550MOHM SM

Deep-Dive with AI

DocumentsDatasheet 3640 Type Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	36401E3N4ATDF

Current Rating (Amps)	0.38 A
DC Resistance (DCR) [Max]	550 mOhm
Frequency - Self Resonant	6 GHz
Height - Seated (Max) [Max]	0.015 in
Height - Seated (Max) [Max]	0.37 mm
Inductance	3.4 nH
Inductance Frequency - Test	500 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Q @ Freq	13, 500 MHz
Shielding	Unshielded
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402 (1005 Metric)
Tolerance	0.2 nH
Type	Thin Film

36401 Series

Part	Supplier Device Package	Type	Shielding	Inductance Frequency - Test	DC Resistance (DCR)	Frequency - Self Resonant	Inductance	Tolerance	Q @ Freq	Mounting Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Passive Product 36401E2N7ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz	350 mOhm	8 GHz	2.7 nH	0.2 nH	13 500 MHz	Surface Mount	0.44 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm
TE Connectivity Passive Product 36401E22NGTDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		2.8 GHz	22 nH	2 %	13 500 MHz	Surface Mount	0.09 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	2.65 Ohm
TE Connectivity Passive Product 36401E3N4ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		6 GHz	3.4 nH	0.2 nH	13 500 MHz	Surface Mount	0.38 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	550 mOhm
TE Connectivity Passive Product 36401E6N8ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		6 GHz	6.8 nH	0.2 nH	13 500 MHz	Surface Mount	0.26 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	1.05 Ohm
TE Connectivity Passive Product 36401E2N0ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz	350 mOhm	8 GHz	2 nH	0.2 nH	13 500 MHz	Surface Mount	0.56 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm
TE Connectivity Passive Product 36401E13N8GTDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		3.7 GHz	13.8 nH	2 %	13 500 MHz	Surface Mount	0.18 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	1.75 Ohm
TE Connectivity Passive Product 36401E8N2ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		5.5 GHz	8.2 nH	0.2 nH	13 500 MHz	Surface Mount	0.22 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	1.25 Ohm
TE Connectivity Passive Product 36401E18NGTDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		3.1 GHz	18 nH	2 %	13 500 MHz	Surface Mount	100 mA	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	2.15 Ohm
TE Connectivity Passive Product 36401E3N5ATDF	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		6 GHz	3.5 nH	0.2 nH	13 500 MHz	Surface Mount	0.38 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	550 mOhm
TE Connectivity Passive Product 36401E3N3A	0402 (1005 Metric)	Thin Film	Unshielded	500 MHz		6 GHz	3.3 nH	0.2 nH	13 500 MHz	Surface Mount	0.38 A	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0.015 in	0.37 mm	450 mOhm	85 °C	-40 °C
