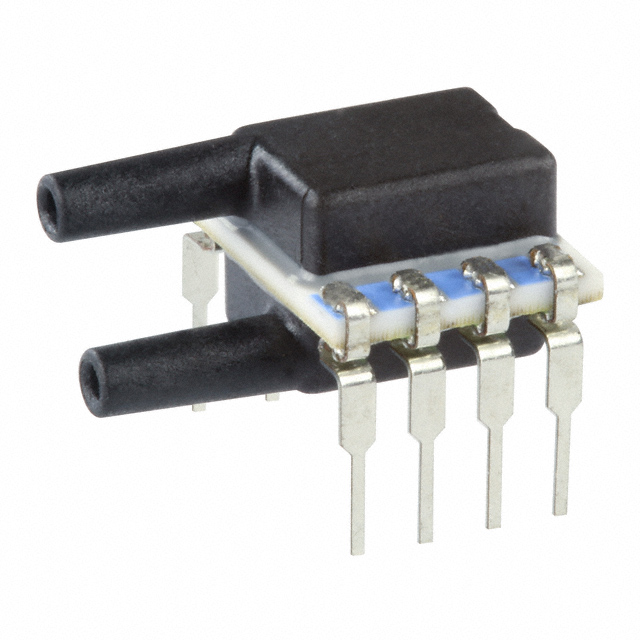

TSCDJJN005PDUCV

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSID 0.09" .05V 8DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTSC, NSC Series Install Instr Pressure Sensors Line Guide +1

TSCDJJN005PDUCV

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSID 0.09" .05V 8DIP

Deep-Dive with AI

DocumentsTSC, NSC Series Install Instr Pressure Sensors Line Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSCDJJN005PDUCV

Accuracy	0.15 %
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure	±30PSI
Maximum Pressure	±206.84kPa
Mounting Type	Through Hole
Operating Pressure	5 PSI
Operating Pressure	34.47 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	5 V
Output [Max]	50 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	Dual Ports, Same Side, 8-DIP
Package / Case	13.3 mm
Package / Case	0.524 "
Port Size [x]	0.09 "
Port Size [x]	2.34 mm
Port Style	Barbless
Pressure Type	Differential
Supplier Device Package	8-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	12 V
Voltage - Supply [Min]	1.5 V

TSCDJJN Series

Part	Output [Max]	Output	Features	Pressure Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Package / Case	Package / Case	Package / Case	Maximum Pressure	Maximum Pressure	Applications	Supplier Device Package	Output Type	Mounting Type	Port Style	Port Size [x]	Port Size [x]	Accuracy	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Output
Honeywell Sensing and Productivity Solutions TSCDJJN005PDUCV	50 mV	5 V	Temperature Compensated	Differential	85 °C	-40 °C	12 V	1.5 V	PC Pin	8-DIP Dual Ports Same Side	13.3 mm	0.524 "	±30PSI	±206.84kPa	Board Mount	8-DIP	Wheatstone Bridge	Through Hole	Barbless	0.09 "	2.34 mm	0.15 %	5 PSI	34.47 kPa
Honeywell Sensing and Productivity Solutions TSCDJJN015PDUCV	52.5 mV		Temperature Compensated	Differential	85 °C	-40 °C	12 V	1.5 V	PC Pin	8-DIP Dual Ports Same Side	13.3 mm	0.524 "			Board Mount	8-DIP	Wheatstone Bridge	Through Hole	Barbless	0.09 "	2.34 mm	0.15 %	15 PSI	103.42 kPa	60 PSI	413.69 kPa	5 V
Honeywell Sensing and Productivity Solutions TSCDJJN100PDUCV	60 mV		Temperature Compensated	Differential	85 °C	-40 °C	12 V	1.5 V	PC Pin	8-DIP Dual Ports Same Side	13.3 mm	0.524 "			Board Mount	8-DIP	Wheatstone Bridge	Through Hole	Barbless	0.09 "	2.34 mm	0.15 %	100 PSI	689.48 kPa	245 PSI	1689.22 kPa
Honeywell Sensing and Productivity Solutions TSCDJJN001PDUCV	15 mV		Temperature Compensated	Differential	85 °C	-40 °C	12 V	1.5 V	PC Pin	8-DIP Dual Ports Same Side	13.3 mm	0.524 "			Board Mount	8-DIP	Wheatstone Bridge	Through Hole	Barbless	0.09 "	2.34 mm	0.2 %			12.5 PSI	86.18 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 41.15

Description

General part information

TSCDJJN Series

Pressure Sensor ±5PSI (±34.47kPa) Differential Male - 0.09" (2.34mm) Tube, Dual 0 mV ~ 50 mV (5V) 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
