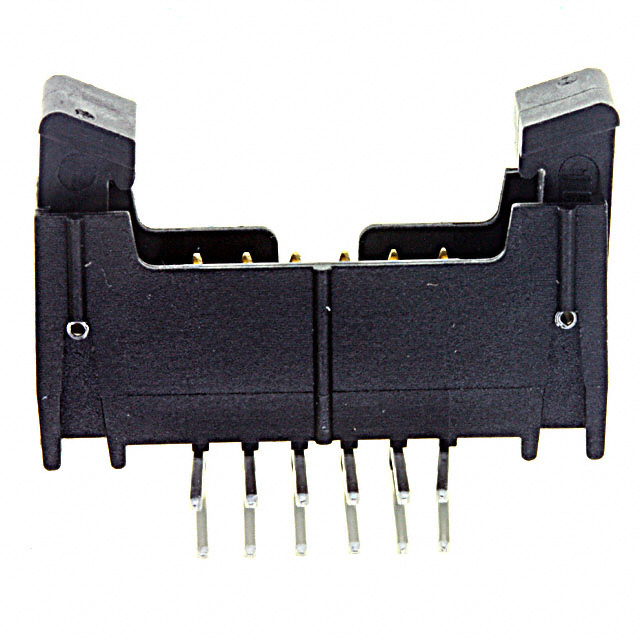

155212-5303-RB
Active3M (TC)
PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
155212-5303-RB
Active3M (TC)
PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 12 CONTACTS, THROUGH HOLE RIGHT ANGLE, 1552 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 155212-5303-RB |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Mating | 0.15 in |
| Contact Length - Mating | 3.81 mm |
| Contact Length - Post | 3.94 mm |
| Contact Length - Post | 0.155 " |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.25 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 6.28 mm |
| Insulation Height | 0.247 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
155212 Series
| Part | Current Rating (Amps) | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Shrouding | Contact Shape | Number of Positions | Contact Finish - Post | Number of Rows | Pitch - Mating [x] | Pitch - Mating [x] | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Finish - Mating | Contact Material | Fastening Type | Features | Mounting Type | Insulation Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 1.25 A | 0.15 in | 3.81 mm | Solder | 6.28 mm | 0.247 in | 200 µin | 5.08 µm | Header | 105 ░C | -55 °C | UL94 V-0 | 10 çin | 0.25 çm | All | Shrouded - 4 Wall | Square | 12 | Tin | 2 | 0.079 in | 2 mm | 2.84 mm | 0.112 in | 0.079 in | 2 mm | Board to Cable/Wire | Gold | Copper Alloy | Latch Lock/Eject Hooks | Keying Slot | Through Hole Right Angle | Black | Male Pin |
3M (TC) | 1.25 A | 0.15 in | 3.81 mm | Solder | 10.8 mm | 0.425 in | 200 µin | 5.08 µm | Header | 105 ░C | -55 °C | UL94 V-0 | 30 Áin | 0.76 Ám | All | Shrouded - 4 Wall | Square | 12 | Tin | 2 | 0.079 in | 2 mm | 0.079 in | 2 mm | Board to Cable/Wire | Gold | Copper Alloy | Latch Lock/Eject Hooks | Keying Slot | Surface Mount | Black | Male Pin | ||
3M (TC) | 1.25 A | 0.15 in | 3.81 mm | Solder | 10.8 mm | 0.425 in | 200 µin | 5.08 µm | Header | 105 ░C | -55 °C | UL94 V-0 | 30 Áin | 0.76 Ám | All | Shrouded - 4 Wall | Square | 12 | Tin | 2 | 0.079 in | 2 mm | 0.079 in | 2 mm | Board to Cable/Wire | Gold | Copper Alloy | Latch Lock/Eject Hooks | Keying Slot | Surface Mount | Black | Male Pin | ||
3M (TC) | 1.25 A | 0.15 in | 3.81 mm | Solder | 6.28 mm | 0.247 in | 200 µin | 5.08 µm | Header | 105 ░C | -55 °C | UL94 V-0 | 30 Áin | 0.76 Ám | All | Shrouded - 4 Wall | Square | 12 | Tin | 2 | 0.079 in | 2 mm | 3.94 mm | 0.155 " | 0.079 in | 2 mm | Board to Cable/Wire | Gold | Copper Alloy | Latch Lock/Eject Hooks | Keying Slot | Through Hole Right Angle | Black | Male Pin |
3M (TC) | 1.25 A | 0.15 in | 3.81 mm | Solder | 6.28 mm | 0.247 in | 200 µin | 5.08 µm | Header | 105 ░C | -55 °C | UL94 V-0 | 30 Áin | 0.76 Ám | All | Shrouded - 4 Wall | Square | 12 | Tin | 2 | 0.079 in | 2 mm | 3.94 mm | 0.155 " | 0.079 in | 2 mm | Board to Cable/Wire | Gold | Copper Alloy | Latch Lock/Eject Hooks | Keying Slot | Through Hole Right Angle | Black | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
155212 Series
Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
