C1704.38.07

Active

Prysmian Group

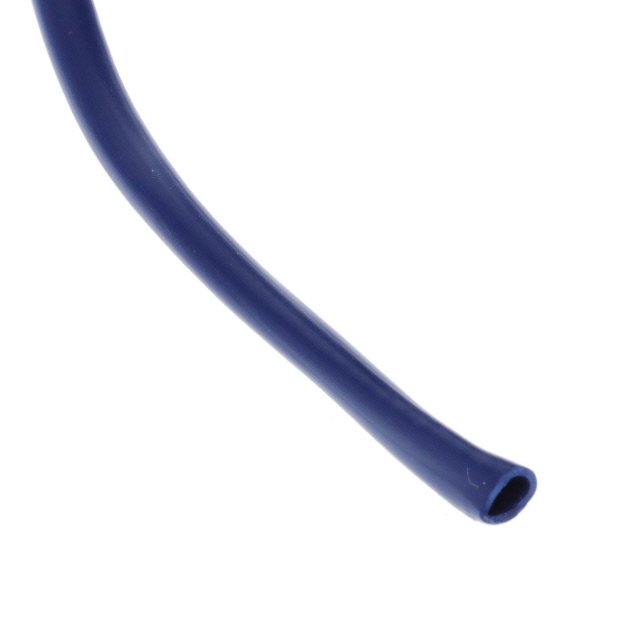

CABLE SPKR 2COND 16AWG BLUE 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE SPKR 2COND 16AWG BLUE 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C1704.38.07

Cable Type	Speaker
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Diameter [diameter]	4.85 mm
Jacket (Insulation) Diameter [diameter]	0.191 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.021 in
Jacket (Insulation) Thickness	0.533 mm
Jacket Color	Blue
Length	15.24 m, 76.2 m
Length	3000 "
Length [x]	50 ft, 25 ft, 500 '
Length [x]	7.62 m, 152.4 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Home, Audio-Video
Voltage	300 V
Wire Gauge	16 AWG

Part	Wire Gauge	Conductor Material	Jacket Color	Length	Length [x]	Conductor Insulation	Cable Type	Length [x]	Usage	Length	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage
Prysmian Group C1704.38.07	16 AWG	Copper Bare	Blue	15.24 m 76.2 m	25 ft 50 ft 500 '	Polypropylene (PP)	Speaker	7.62 m 152.4 m	Audio-Video Home	3000 "	2	-20 C	60 °C	30 AWG	26	0.021 in	0.533 mm	Poly-Vinyl Chloride (PVC)	4.85 mm	0.191 in	300 V
Prysmian Group C1704.30.02	16 AWG	Copper Bare		304.8 m		Polypropylene (PP)	Speaker		Audio-Video Home	1000 ft	2	-20 C	60 °C	30 AWG	26	0.021 in	0.533 mm	Poly-Vinyl Chloride (PVC)	4.85 mm	0.191 in	300 V
Prysmian Group C1704.25.07	16 AWG	Copper Bare	Blue		500 '	Polypropylene (PP)	Speaker	152.4 m	Audio-Video Home		2	-20 C	60 °C	30 AWG	26	0.021 in	0.533 mm	Poly-Vinyl Chloride (PVC)	5.03 mm	0.198 in	300 V
Prysmian Group C1704.30.07	16 AWG	Copper Bare	Blue	304.8 m		Polypropylene (PP)	Speaker		Audio-Video Home	1000 ft	2	-20 C	60 °C	30 AWG	26	0.021 in	0.533 mm	Poly-Vinyl Chloride (PVC)	4.85 mm	0.191 in	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Speaker Cable Blue 16 AWG 50.00' (15.24m)
