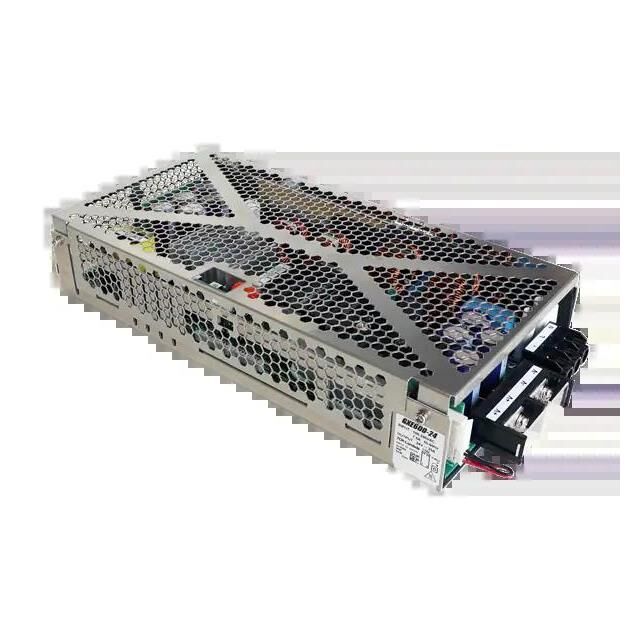

GXE600-48/A

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 600W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	GXE600-48/A

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	12.5 A
Efficiency	95 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	600 W
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Number of Outputs	Voltage - Output 1	Features	Power (Watts)	Current - Output 1	Minimum Load Required	Efficiency	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Applications	Voltage - Isolation	Type
TDK-LAMBDA GXE600-48/A	1	48 V	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	600 W	12.5 A		95 %	Chassis Mount	41 mm	254 mm	5 "	10 in	127 mm	1.61 "	-20 C	70 °C	CE	ITE (Commercial) Medical	4000 V	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 636.96

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
