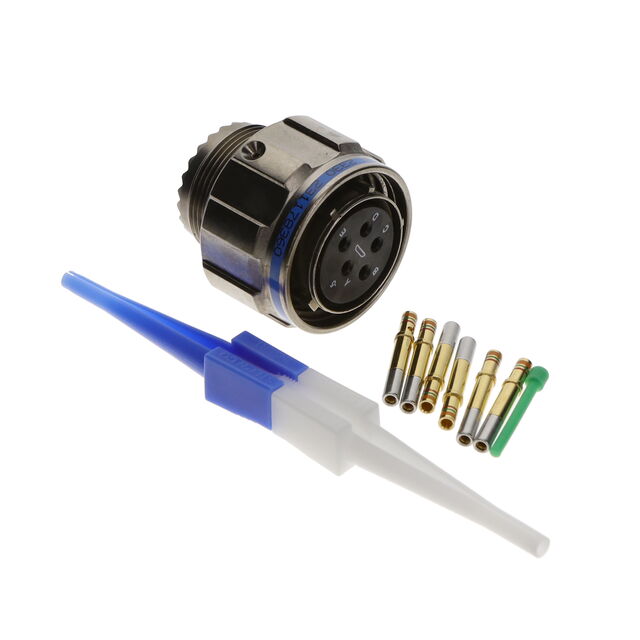

MS27467T15B5P

Active

Corsair

PLUG STRAIGHT CABLE

Search across all available documentation for this part.

Active

Corsair

PLUG STRAIGHT CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	MS27467T15B5P

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	15-5
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

Part	Qualification	Fastening Type	Mounting Type	Contact Material	Shell Finish	Primary Material	Material Flammability Rating	Shell Size - Insert	Connector Type	Applications	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Orientation	Current Rating (Amps)	Color	Features	Shielding	Ingress Protection	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Contact Finish - Mating	Shell Size, MIL
Corsair MS27467T15B5P	MIL-DTL-38999 Series I	Bayonet Lock	Free Hanging (In-Line)	Copper Alloy	Olive Drab Cadmium	Metal	UL94 V-0	15-5	Male Pins Plug	Aerospace Military	Crimp	1.27 µm	50 µin	Aluminum Alloy	N	13 A	Olive Drab	Coupling Nut	Shielded	IP67	Thermoplastic	-65 ░C	200 °C	Military	Gold	C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Crimp
