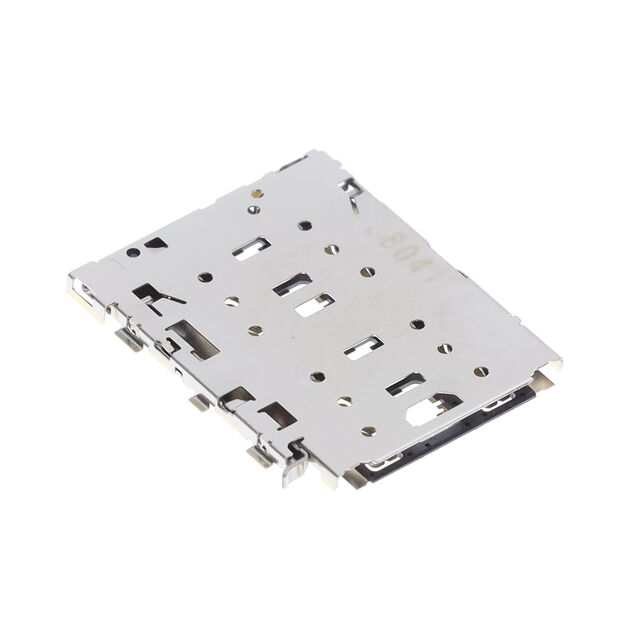

SF78S012VBAR1400
ActiveJAE Electronics
DUAL NANO SIM CARD CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF78S012VBAR1400
ActiveJAE Electronics
DUAL NANO SIM CARD CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF78S012VBAR1400 |
|---|---|
| Card Type | NANO SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 12 µin |
| Features | Switch, Pick and Place |
| Height Above Board | 1.3 mm |
| Height Above Board [z] | 0.051 " |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.10 | |
| 10 | $ 2.81 | |||
| 25 | $ 2.66 | |||
| 50 | $ 2.60 | |||
| 100 | $ 2.48 | |||
| 250 | $ 2.17 | |||
| 500 | $ 2.11 | |||
| Digi-Reel® | 1 | $ 3.10 | ||
| 10 | $ 2.81 | |||
| 25 | $ 2.66 | |||
| 50 | $ 2.60 | |||
| 100 | $ 2.48 | |||
| 250 | $ 2.17 | |||
| 500 | $ 2.11 | |||
| Tape & Reel (TR) | 1400 | $ 1.80 | ||
| 2800 | $ 1.67 | |||
Description
General part information
SF78S012 Series
12 Position Card Connector Combo - NANO SIM, NANO SIM Surface Mount, Right Angle Gold
