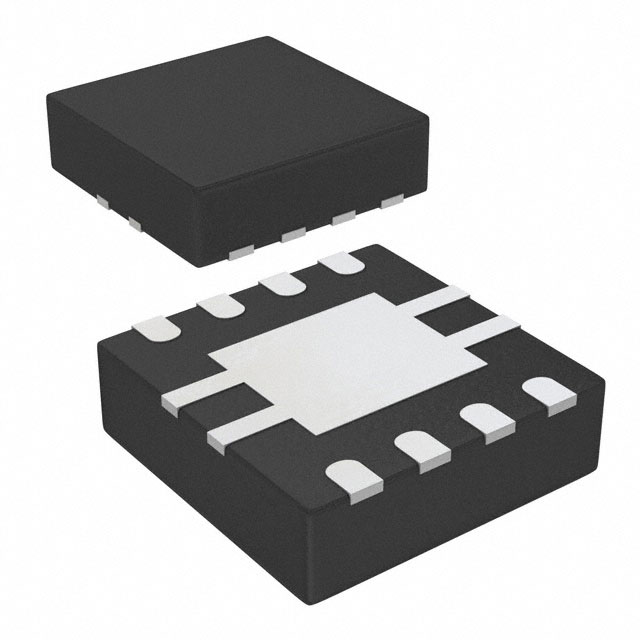

RT2519GQV(2)

Active

Richtek USA Inc.

IC REG LINEAR POS ADJ 1A 8VDFN

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC REG LINEAR POS ADJ 1A 8VDFN

Technical Specifications

Parameters and characteristics for this part

Specification	RT2519GQV(2)

Control Features	Enable
Current - Output	1 A
Current - Supply (Max) [Max]	350 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	8-VDFN Exposed Pad
Protection Features	Over Current, Over Temperature
Supplier Device Package	8-VDFN (3x3)
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	0.8 V
Voltage Dropout (Max) [Max]	0.5 V

Part	Output Configuration	Mounting Type	Voltage Dropout (Max) [Max]	Output Type	Protection Features	Control Features	Package / Case	Number of Regulators	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Output (Max) [Max]	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Current - Quiescent (Iq)
Richtek USA Inc. RT2519GQV(2)	Positive	Surface Mount	0.5 V	Adjustable	Over Current Over Temperature	Enable	8-VDFN Exposed Pad	1	1 A	-40 °C	125 ¯C	8-VDFN (3x3)	5.5 V	350 µA	6 V	0.8 V
Richtek USA Inc. RT2519WGQV	Positive	Surface Mount	0.37 V	Adjustable	Over Current Over Temperature Short Circuit Under Voltage Lockout (UVLO)	Current Limit Enable	8-VQFN Exposed Pad	1	1 A	-40 °C	125 ¯C	8-AL-DFN (3x3)	5.5 V		2.2 V	0.8 V	48 dB	38 dB	350 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-VDFN (3x3)
