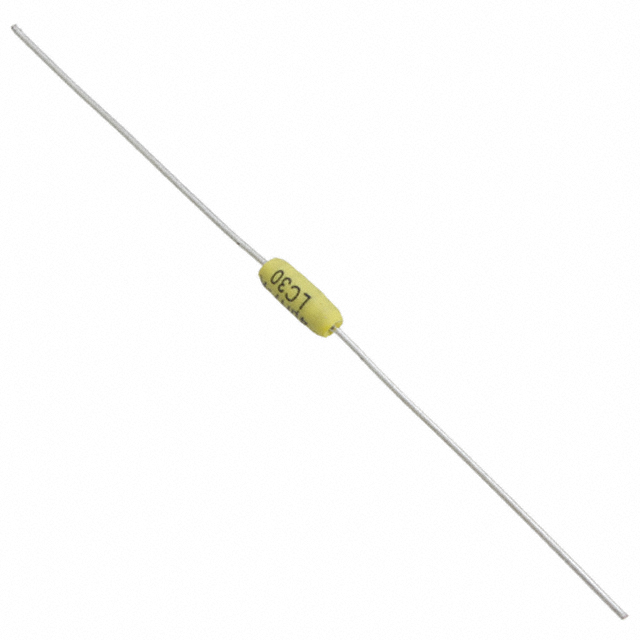

SC30150KT

Active

TE Connectivity Passive Product

FIXED IND 15UH 251MA 2.8 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SC10/15/30/55 Series

SC30150KT

Active

TE Connectivity Passive Product

FIXED IND 15UH 251MA 2.8 OHM TH

Deep-Dive with AI

DocumentsDatasheet SC10/15/30/55 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC30150KT

Current Rating (Amps)	251 mA
DC Resistance (DCR) [Max]	2.8 Ohm
Frequency - Self Resonant	35 MHz
Inductance	15 µH
Inductance Frequency - Test	2.5 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	2.5 MHz, 45
Shielding	Shielded
Size / Dimension [custom]	10 mm
Size / Dimension [custom]	0.394 in
Size / Dimension [diameter]	0.165 in
Size / Dimension [diameter]	4.2 mm
Tolerance	10 %

SC30 Series

Part	Inductance	Tolerance	Mounting Type	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Shielding	Package / Case	Inductance Frequency - Test	Current Rating (Amps)	Q @ Freq	Frequency - Self Resonant	DC Resistance (DCR)	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Type
TE Connectivity Passive Product SC30150KT	15 µH	10 %	Through Hole	2.8 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	2.5 MHz	251 mA	2.5 MHz 45	35 MHz
TE Connectivity Passive Product SC301R0KR	1 µH	10 %	Through Hole	1 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	25 MHz	0.42 A	25 25 MHz	230 MHz
TE Connectivity Passive Product SC301R2KT	1.2 µH	10 %	Through Hole		100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	7.9 MHz	990 mA	7.9 MHz 25	150 MHz	180 mOhm
TE Connectivity Passive Product SC30101KT	100 µH	10 %	Through Hole	8 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	2.5 MHz	149 mA	2.5 MHz 50	13 MHz
TE Connectivity Passive Product SC30R10KT	100 nH	10 %	Through Hole	80 mOhm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	25 MHz	1.49 A	40	680 MHz
TE Connectivity Passive Product SC30471KT		10 %	Through Hole	42 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	790 kHz	0.065 A	30 790 kHz	6 MHz
TE Connectivity Passive Product SC30390KT	39 µH	10 %	Through Hole	3.6 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	2.5 MHz	222 mA	2.5 MHz 45	22 MHz
TE Connectivity Passive Product SC30R15KT	150 nH	10 %	Through Hole		100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	25 MHz	1.33 A	25 MHz 38	600 MHz	100 mOhm
TE Connectivity Passive Product SC30101KR	100 µH	10 %	Through Hole	8 Ohm	100 °C	-55 °C				2.8 mm	Unshielded	Axial	2.5 MHz	149 mA	2.5 MHz 50	13 MHz		7 mm	0.11 in	0.276 in	Wirewound
TE Connectivity Passive Product SC305R6KT	5.6 µH	10 %	Through Hole	1.8 Ohm	100 °C	-55 °C	10 mm	0.165 in	0.394 in	4.2 mm	Shielded	Axial	7.9 MHz	314 mA	7.9 MHz 50	65 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2000	$ 2.34

Description

General part information

SC30 Series

15 µH Shielded Inductor 251 mA 2.8Ohm Max Axial

Documents

Technical documentation and resources

Datasheet

SC10/15/30/55 Series

Datasheet
