680S13W6103L201
ActiveMH Connectors

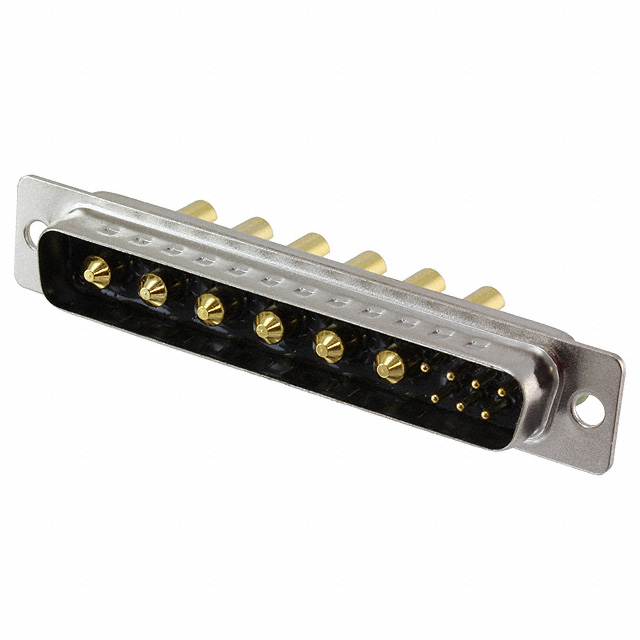

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-13W6, PLUG, 13 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
680S13W6103L201
ActiveMH Connectors
COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 680S SERIES, DC-13W6, PLUG, 13 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 680S13W6103L201 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 13 |
| Number of Positions [custom] | 6 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 13W6, 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
680S13W Series
13 (7 + 6 Power) Position D-Sub, Combo Plug, Male Pins Connector
