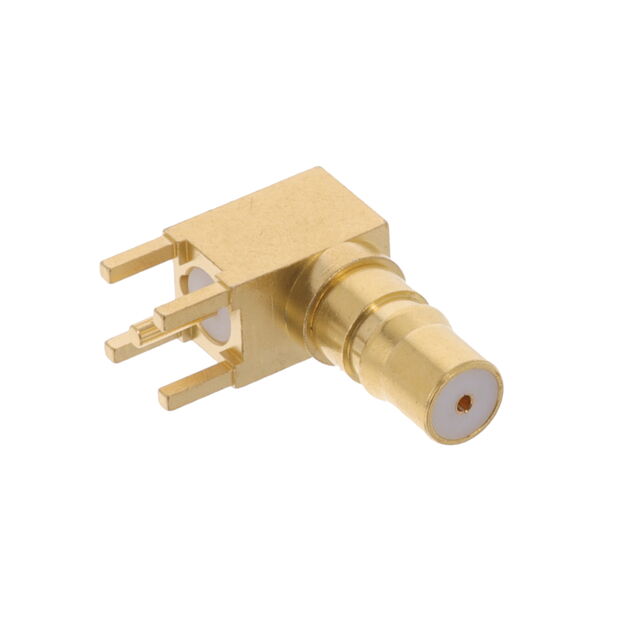

85_QMA-50-0-3/111_NH

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

85_QMA-50-0-3/111_NH

Technical Specifications

Parameters and characteristics for this part

Specification	85_QMA-50-0-3/111_NH

Body Finish	Gold
Body Material	Brass
Center Contact Material	Bronze, Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Plating	Housing Color	Fastening Type	Center Contact Material	Connector Type	Body Material	Dielectric Material	Voltage Rating	Contact Termination	Frequency - Max [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Body Finish	Number of Ports	Impedance
Huber+Suhner, Inc. 85_QMA-50-0-3/111_NH	Gold	Gold	Push-Pull	Beryllium Copper Bronze	Female Socket Jack	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	480 V	Solder	6000 MHz	Through Hole Right Angle	85 °C	-40 °C	Solder	Gold	1	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

QMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
