M83513/15-H01CP
ActiveCinch Connectivity Solutions Trompeter

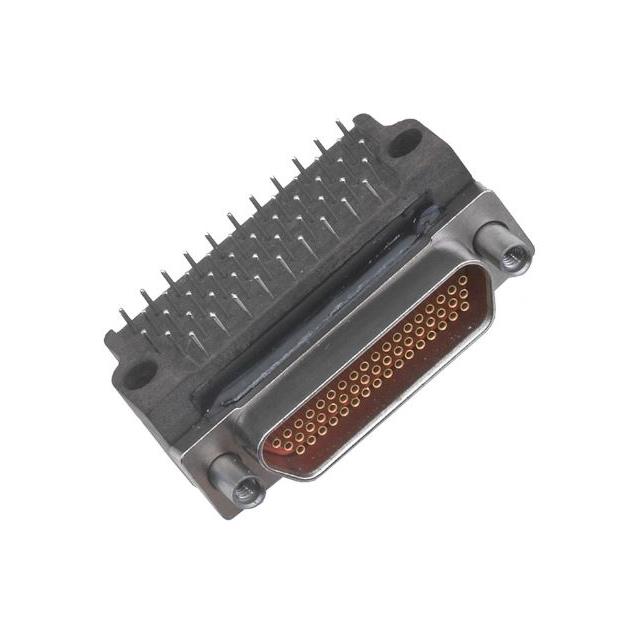

100 POS RCPT RED. 90 PCB CD PLTD
Deep-Dive with AI
Search across all available documentation for this part.
M83513/15-H01CP
ActiveCinch Connectivity Solutions Trompeter
100 POS RCPT RED. 90 PCB CD PLTD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/15-H01CP |
|---|---|
| Backset Spacing | 5.08 mm |
| Backset Spacing | 0.2 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 100 |
| Number of Rows | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Aluminum Alloy |
| Shell Size, Connector Layout [custom] | 0.05 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 365.39 | |
| 10 | $ 338.59 | |||
| 25 | $ 326.41 | |||
| Bulk | 1 | $ 3305.77 | ||
| 1 | $ 505.25 | |||
| 10 | $ 468.20 | |||
Description
General part information
M83513/15 Series
100 Position D-Type, Micro-D Receptacle, Female Sockets Connector
