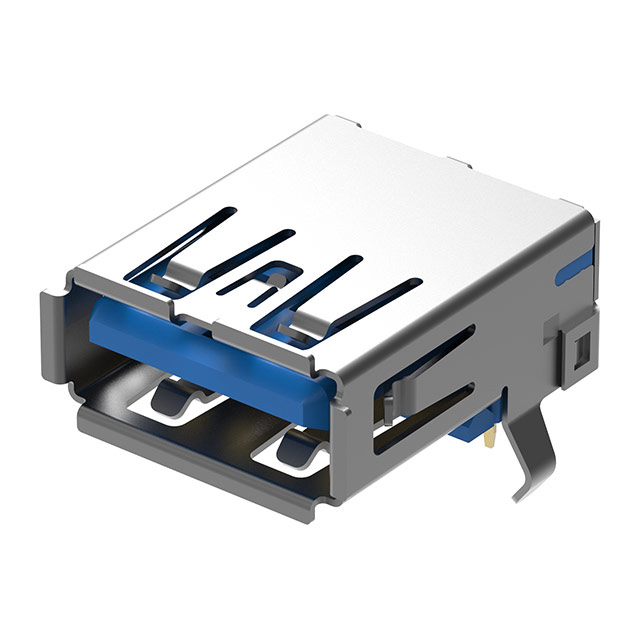

USB1075-30-P-B

Obsolete

GCT

USB3.0 A SKT, THRU HOLE, R/A, 30

Search across all available documentation for this part.

Obsolete

GCT

USB3.0 A SKT, THRU HOLE, R/A, 30

Technical Specifications

Parameters and characteristics for this part

Specification	USB1075-30-P-B

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Gender	Receptacle
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage - Rated	100 V

Part	Mating Cycles	Mounting Feature	Material Flammability Rating	Shell/Shielding Material	Contact Finish	Connector Type	Mounting Type	Termination	Voltage - Rated	Number of Contacts	Current Rating (Amps)	Number of Ports	Gender	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
GCT USB1075-30-P-B	5000	Horizontal	UL94 V-0	Copper Alloy	Gold	USB-A (USB TYPE-A)	Through Hole Right Angle	Solder	100 V	9	0.25 A 1.8 A	1	Receptacle	Blue	85 °C	-55 °C	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
