0190820013

Active

Molex

CONN RING FLAT 8AWG #1/4 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190820013

Active

Molex

CONN RING FLAT 8AWG #1/4 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190820013

Contact Finish	Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall	30.15 mm
Length - Overall	1.187 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.25 Stud
Terminal Type	Tubular (Battery Lugs), Flat Sided
Termination	Crimp
Thickness	1.78 mm
Thickness	0.07 in
Width - Outer Edges [x]	11.13 mm
Width - Outer Edges [x]	0.438 in
Wire Gauge	8 AWG

019082 Series

Part	Contact Material	Contact Finish	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Terminal Type	Width - Outer Edges	Width - Outer Edges	Insulation	Termination	Mounting Type	Thickness	Thickness	Wire Gauge	Length - Overall	Length - Overall	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Features
Molex 0190820005	Copper	Tin	0.25 Stud	1.406 in	35.72 mm	Flat Sided Tubular (Battery Lugs)	0.594 in	15.09 mm	Non-Insulated	Crimp	Free Hanging (In-Line)	2.03 mm	0.08 "	6 AWG
Molex 0190820013	Copper	Tin	0.25 Stud			Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	1.78 mm	0.07 in	8 AWG	30.15 mm	1.187 in	11.13 mm	0.438 in
Molex 0190820009	Copper	Tin	0.3125 Stud	1.406 in	35.72 mm	Flat Sided Tubular (Battery Lugs)	0.594 in	15.09 mm	Non-Insulated	Crimp	Free Hanging (In-Line)	2.03 mm	0.08 "	6 AWG
Molex 0190820026	Copper	Tin		1.5 in	38.1 mm	Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	2.03 mm	0.08 "	4 AWG					13.49 mm	0.531 "	3/8 Stud
Molex 0190820004	Copper	Tin		1.563 in	39.7 mm	Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	2.03 mm	0.08 "	6 AWG							1/2 Stud	0.766 in	19.46 mm
Molex 0190820011	Copper	Tin	10 Stud			Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	1.78 mm	0.07 in	8 AWG	30.15 mm	1.187 in	11.13 mm	0.438 in
Molex 0190820025	Copper	Tin	0.3125 Stud	1.5 in	38.1 mm	Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	2.03 mm	0.08 "	4 AWG					13.49 mm	0.531 "
Molex 0190820001	Copper	Tin	0.25 Stud	1.625 in	41.28 mm	Flat Sided Tubular (Battery Lugs)			Non-Insulated	Crimp	Free Hanging (In-Line)	2.41 mm	0.095 in	2 AWG			15.88 mm	0.625 in						Heavy Duty

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.91
		10	$ 0.75
		100	$ 0.63
	Tape & Reel (TR)	500	$ 0.63
		1000	$ 0.50
		1500	$ 0.47
		2500	$ 0.45
		5000	$ 0.44
		12500	$ 0.41

Description

General part information

019082 Series

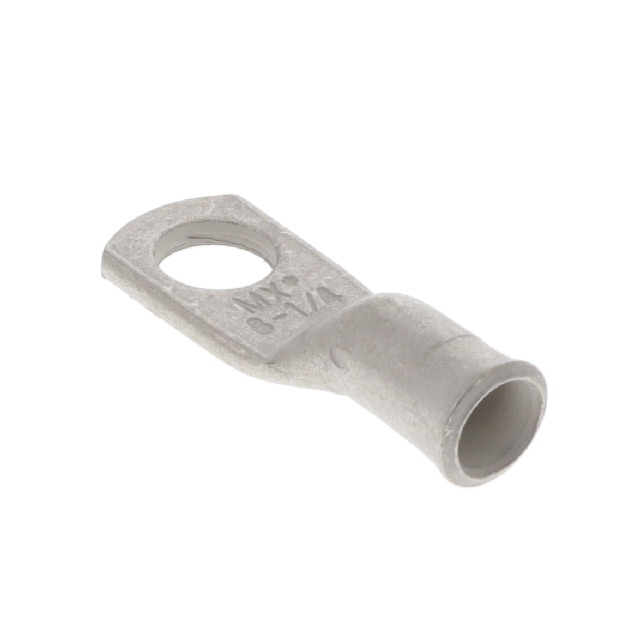

Ring Terminal Connector 1/4 Stud Flat Sided, Tubular (Battery Lugs) 8 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
