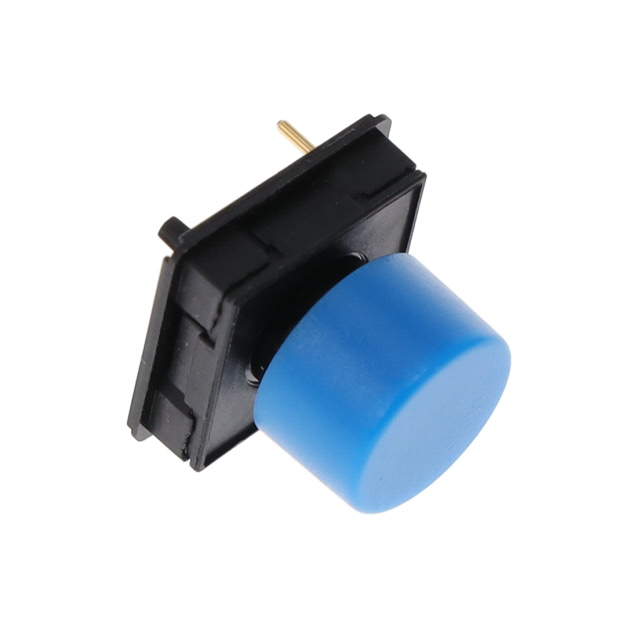

1241.1032.4

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.1032.4

Actuator Height off PCB, Vertical [z]	10.75 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	0.25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Outline [x]	12.65 mm
Outline [y]	12.65 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	PC Pin

Part	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical	Illumination	Ingress Protection	Mounting Type	Actuator Orientation	Switch Function	Circuit	Actuator Material	Actuator Type	Features	Termination Style	Switch Travel	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical [z]
SCHURTER Inc. 1241.1032.6	1000000 Cycles	-25 °C	85 °C	12.65 mm	12.65 mm	12.25 mm	Non-Illuminated	IP40	Through Hole	Top Actuated	Off-Mom	SPST-NO	Polycarbonate (PC)	Standard	Tactile Feedback	PC Pin	0.45 mm	0.05 A 24 VDC	0.25 kgf
SCHURTER Inc. 1241.1032.4	1000000 Cycles	-25 °C	85 °C	12.65 mm	12.65 mm		Non-Illuminated	IP40	Through Hole	Top Actuated	Off-Mom	SPST-NO	Polycarbonate (PC)	Standard	Tactile Feedback	PC Pin	0.45 mm	0.05 A 24 VDC	0.25 kgf	10.75 mm
SCHURTER Inc. 1241.1032.2	1000000 Cycles	-25 °C	85 °C	12.65 mm	12.65 mm		Non-Illuminated	IP40	Through Hole	Top Actuated	Off-Mom	SPST-NO	Polycarbonate (PC)	Standard	Tactile Feedback	PC Pin	0.45 mm	0.05 A 24 VDC	0.25 kgf	9.25 mm
SCHURTER Inc. 1241.1032.3	1000000 Cycles	-25 °C	85 °C	12.65 mm	12.65 mm		Non-Illuminated	IP40	Through Hole	Top Actuated	Off-Mom	SPST-NO	Polycarbonate (PC)	Standard	Tactile Feedback	PC Pin	0.45 mm	0.05 A 24 VDC	0.25 kgf	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
