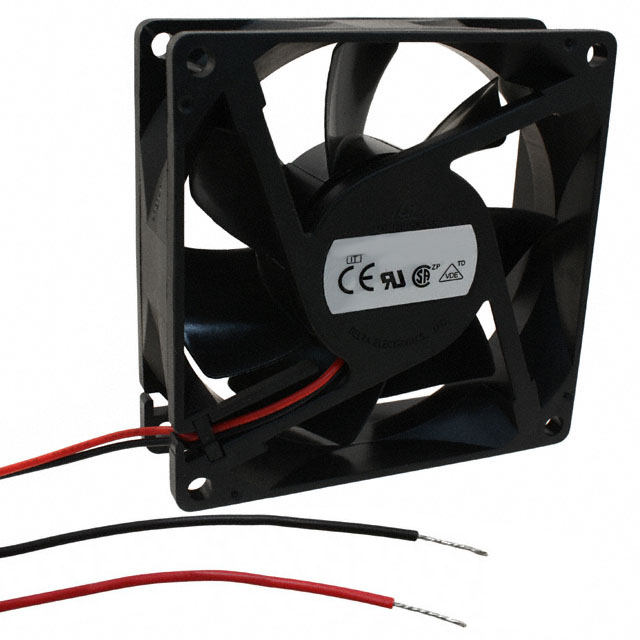

AUB0812VH-AIT

Active

Delta Electronics

DC FAN AXIAL SUPERFLO BEARING 12V 7V TO 13.8V 46.6CFM 39DB 80 X 80 X 25.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans VDE Cert Fans, Blowers CSA Cert +3

AUB0812VH-AIT

Active

Delta Electronics

DC FAN AXIAL SUPERFLO BEARING 12V 7V TO 13.8V 46.6CFM 39DB 80 X 80 X 25.4MM

Deep-Dive with AI

DocumentsFans VDE Cert Fans, Blowers CSA Cert +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AUB0812VH-AIT

Air Flow	1.3 m³/min
Air Flow	46.6 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Superflo
Current Rating (Amps)	270 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.24 W
RPM	3600 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	63.8 Pa
Static Pressure	0.256 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.195 lb
Weight	88.45 g
Width [y]	25.4 mm

AUB0812 Series

Part	Termination	Air Flow	Air Flow	Weight	Weight	Noise	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	RPM	Power (Watts)	Approval Agency	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Lifetime @ Temp.	Features	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Material - Frame	Voltage - Rated	Static Pressure	Static Pressure
Delta Electronics AUB0812L-9X41	4 Wire Leads	27.9 CFM	0.781 m³/min	0.195 lb	88.45 g	43 dB	13.8 VDC	10.8 VDC	Plastic	2400 RPM	1.08 W	CE CSA UL VDE	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.09 A	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.102 in H2O	25.5 Pa
Delta Electronics AUB0812VH-AIT	2 Wire Leads	46.6 CFM	1.3 m³/min	0.195 lb	88.45 g	39 dB(A)	13.8 VDC	7 V	Plastic	3600 RPM	3.24 W	CE CSA UL VDE	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs		270 mA	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.256 in H2O	63.8 Pa
Delta Electronics AUB0812L-A	2 Wire Leads	31.1 CFM	0.871 mł/min	0.195 lb	88.45 g	28 dB	13.8 VDC	7 V	Plastic	2400 RPM	1.32 W	CE CSA UL VDE	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs		110 mA	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.118 in H2O	29.4 Pa
Delta Electronics AUB0812VH-AF00	3 Wire Leads	47 CFM	1.32 m³/min			39 dB(A)	13.8 VDC	7 V	Plastic	3600 RPM	3.24 W		Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	270 mA	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.256 in H2O	63.8 Pa
Delta Electronics AUB0812VH-SP00	4 Wire Leads	42 CFM	1.18 m³/min	0.219 lb	99.34 g	39 dB(A)	13.2 VDC	10.8 VDC	Plastic	3600 RPM	2.28 W	CE CSA UL VDE	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.19 A	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.217 in H2O	54.1 Pa
Delta Electronics AUB0812HH-A	2 Wire Leads			0.195 lb	88.45 g	35.5 dB	13.8 VDC	7 V	Plastic	3250 RPM	2.52 W	CE CSA UL VDE	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Superflo	50000 Hrs		0.21 A	80 mm	80 mm	25.4 mm	Plastic	12 VDC	0.207 in H2O	51.6 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.47
		10	$ 6.95
		25	$ 6.42
		50	$ 6.04
		100	$ 5.69
		250	$ 5.26
		500	$ 4.95
Newark	Each	50	$ 6.33

Description

General part information

AUB0812 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Superflo 46.6 CFM (1.30m³/min) 2 Wire Leads
