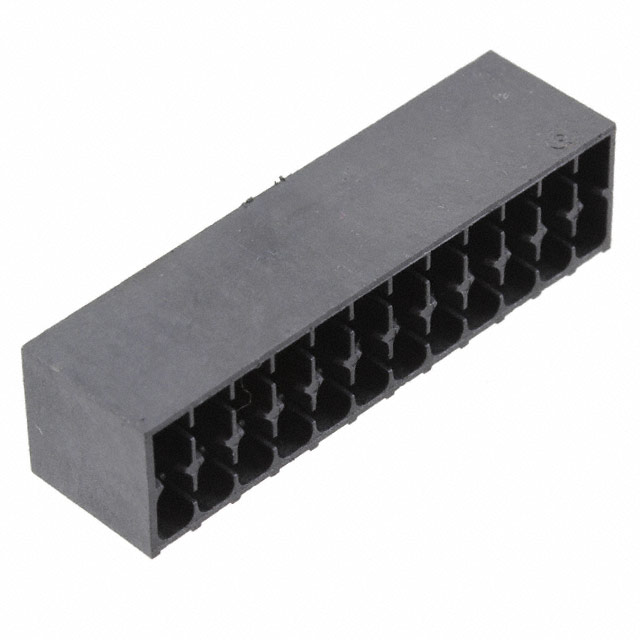

1786934

Active

Phoenix Contact

12 STRAIGHT NEEDLE 2 3.5MM BLACK PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Search across all available documentation for this part.

Documents1786934

Active

Phoenix Contact

12 STRAIGHT NEEDLE 2 3.5MM BLACK PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Documents1786934

Technical Specifications

Parameters and characteristics for this part

Specification	1786934

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - IEC	8 A
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	24
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V
Voltage - UL	150 V

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header

Part	Mounting Type	Voltage - UL	Number of Levels	Current - IEC	Positions Per Level	Color	Pitch [x]	Pitch [x]	Type	Contact Mating Finish	Termination Style	Current - UL	Insulation Height	Insulation Height	Housing Material	Number of Positions	Voltage - IEC	Header Orientation	Contact Tail Length	Contact Tail Length	Material Flammability Rating
Phoenix Contact 1786934	Through Hole	150 V	2	8 A	12	Black	3.5 mm	0.138 in	Header Male Pins Shrouded (4 Side)	Tin	Solder	8 A	0.425 in	10.8 mm	Liquid Crystal Polymer (LCP)	24	250 V	90° Right Angle	0.079 in	2 mm	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 18 Pos 3.5mm Dbl Row Through Hole Header
