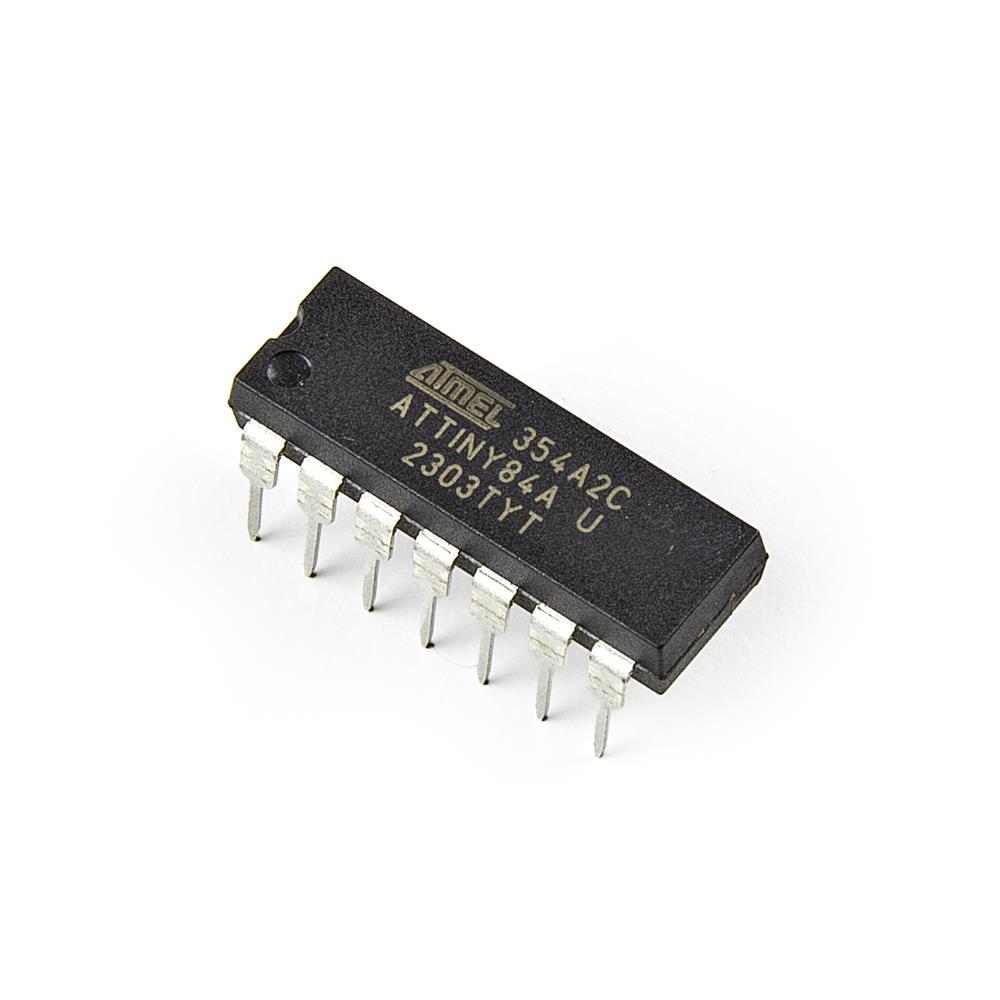

COM-24309

Active

SparkFun Electronics

IC MCU 8BIT 8KB 14DIP

Search across all available documentation for this part.

Active

SparkFun Electronics

IC MCU 8BIT 8KB 14DIP

Technical Specifications

Parameters and characteristics for this part

Specification	COM-24309

Connectivity	USI
Core Processor	AVR
Core Size	8-Bit
Data Converters [custom]	8
Data Converters [custom]	10
EEPROM Size	512 x 8
Mounting Type	Through Hole
Number of I/O	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Peripherals	PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor
Program Memory Size	8 KB
Program Memory Type	FLASH
RAM Size	512
Speed	20 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

Part	Speed	Core Processor	Program Memory Size	EEPROM Size	Peripherals	Package / Case	Package / Case [y]	Package / Case [x]	Core Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity	RAM Size
SparkFun Electronics COM-24309	20 MHz	AVR	8 KB	512 x 8	Brown-out Detect/Reset POR PWM Temp Sensor WDT	14-DIP	7.62 mm	0.3 "	8-Bit	Through Hole	85 °C	-40 °C	12	FLASH	8	10	Internal	1.8 V	5.5 V	USI	512

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.12

General part information

AVR AVR® ATtiny Microcontroller IC 8-Bit 20MHz 8KB (4K x 16) FLASH 14-PDIP
