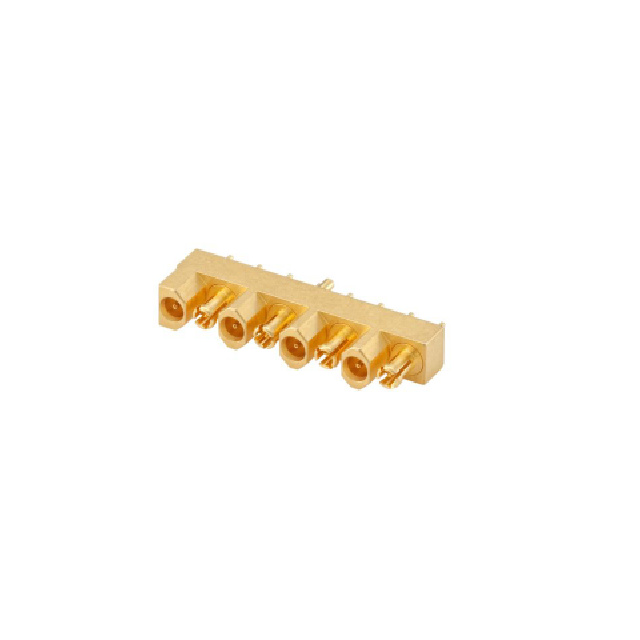

MF2C118-40ML5-NM

Active

Rosenberger

MINI COAX NON MAGNETIC MULTIPORT

Search across all available documentation for this part.

Active

Rosenberger

MINI COAX NON MAGNETIC MULTIPORT

Technical Specifications

Parameters and characteristics for this part

Specification	MF2C118-40ML5-NM

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Plug, Male Pin (4), Jack, Female Socket (4)
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Through Hole
Number of Ports	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Voltage Rating	Connector Style	Body Finish	Shield Termination	Number of Ports	Dielectric Material	Mating Cycles	Frequency - Max [Max]	Body Material	Housing Color	Connector Type	Center Contact Material	Fastening Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Center Contact Plating	Contact Termination
Rosenberger MF2C118-40ML5-NM	500 V	Miniature Coaxial	Gold	Solder	8	Polytetrafluoroethylene (PTFE)	500	20 GHz	Brass	Gold	Jack Female Socket (4) Plug Male Pin (4)	Beryllium Copper	Snap-On	Surface Mount Through Hole	125 °C	-40 °C	50 Ohms	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Miniature Coaxial Connector Jack, Female Socket (4); Plug, Male Pin (4) 50 Ohms Surface Mount, Through Hole Solder
