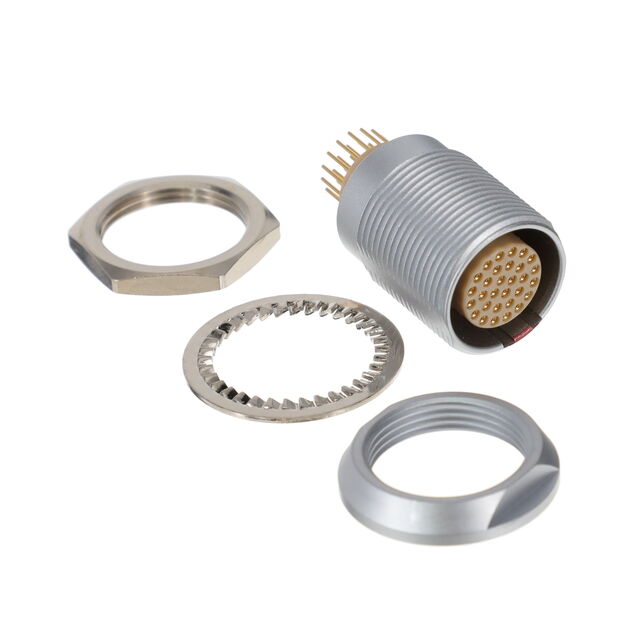

ECA.3B.330.CLN

Active

LEMO

CONN RCPT FMALE 30POS GOLD SLDR

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 30POS GOLD SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	ECA.3B.330.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	3.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Front and Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	30
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	330
Shielding	Shielded
Termination	Solder

Part	Contact Finish - Mating	Mounting Feature	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Orientation	Current Rating (Amps)	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Connector Type	Fastening Type	Contact Material	Insert Material	Shell Size - Insert	Termination	Ingress Protection	Shielding	Primary Material
LEMO ECA.3B.330.CLN	Gold	Front and Rear Side Nut	Chrome	59 Áin	1.5 Ám	UL94 V-0	A	3.5 A	30	Brass	-55 °C	250 °C	Silver	Panel Mount Through Hole	Receptacle Female Sockets	Push-Pull	Bronze	Polyetheretherketone (PEEK)	330	Solder	IP50	Shielded	Metal
LEMO ECA.3B.330.CLL	Gold	Front and Rear Side Nut	Chrome	59 Áin	1.5 Ám	UL94 V-0	A	3.5 A	30	Brass	-55 °C	250 °C	Silver		Receptacle Female Sockets	Push-Pull	Bronze	Polyetheretherketone (PEEK)	330		IP50	Shielded	Metal
LEMO ECA.3B.324.CYM	Gold	Front and Rear Side Nut	Chrome	59 Áin	1.5 Ám	UL94 V-0	A	4 A	24	Brass	-55 °C	250 °C	Silver		Receptacle Female Sockets	Push-Pull	Bronze	Polyetheretherketone (PEEK)	324	Crimp	IP50	Shielded	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Circular Connector Receptacle, Female Sockets Solder
