182-025-212-531

Obsolete

MH Connectors

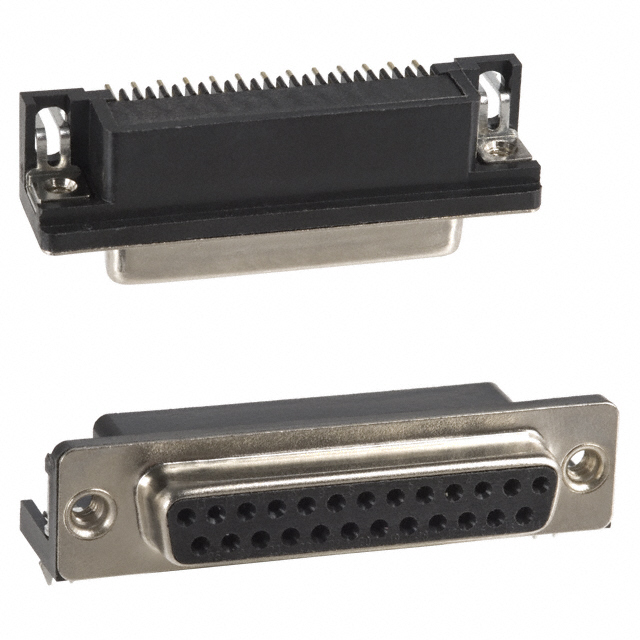

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

182-025-212-531

Obsolete

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182-025-212-531

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

182-025 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Dielectric Material	Contact Type	Material Flammability Rating	Color	Mounting Type	Contact Finish	Backset Spacing	Backset Spacing	Termination	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Features	Connector Type	Flange Feature	Shell Material, Finish	Connector Style	Contact Material
MH Connectors 182-025-113R451	105 ░C	-55 °C	2	Polyamide (PA9T) Nylon 9T	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash	Grounding Indents	Male Pins Plug	Housing/Shell (4-40)	Nickel Plated Steel	D-Sub	Brass
MH Connectors 182-025-112-431	105 ░C	-55 °C	2	Polyester Glass Filled	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash	Grounding Indents	Male Pins Plug	Housing/Shell (Unthreaded)		D-Sub
MH Connectors 182-025-212-531	105 ░C	-55 °C	2	Polyester Glass Filled	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash		Receptacle Female Sockets	Housing/Shell (4-40)		D-Sub
MH Connectors 182-025-212-451	105 ░C	-55 °C	2	Polyester Glass Filled	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash		Receptacle Female Sockets	Housing/Shell (4-40)		D-Sub
MH Connectors 182-025-213R481	105 ░C	-55 °C	2	Polyamide (PA9T) Nylon 9T	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash		Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	D-Sub
MH Connectors 182-025-112-171	105 ░C	-55 °C	2	Polyester Glass Filled	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash	Ground Strap Grounding Indents	Male Pins Plug	Housing/Shell (4-40)		D-Sub
MH Connectors 182-025-213R561	105 ░C	-55 °C	2	Polyamide (PA9T) Nylon 9T	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash		Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	D-Sub
MH Connectors 182-025-213R431	105 ░C	-55 °C	2	Polyamide (PA9T) Nylon 9T	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Nickel Plated Steel	D-Sub
MH Connectors 182-025-113R481	105 ░C	-55 °C	2	Polyamide (PA9T) Nylon 9T	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash	Grounding Indents	Male Pins Plug	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	D-Sub	Brass
MH Connectors 182-025-112-531	105 ░C	-55 °C	2	Polyester Glass Filled	Signal	UL94 V-0	Black	Panel Mount Right Angle Through Hole	Gold	8.08 mm	0.318 "	Solder	5 A	B DB	3	Flash	Board Lock Grounding Indents	Male Pins Plug	Housing/Shell (4-40)		D-Sub

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

182-025 Series

25 Position D-Sub Receptacle, Female Sockets Connector
