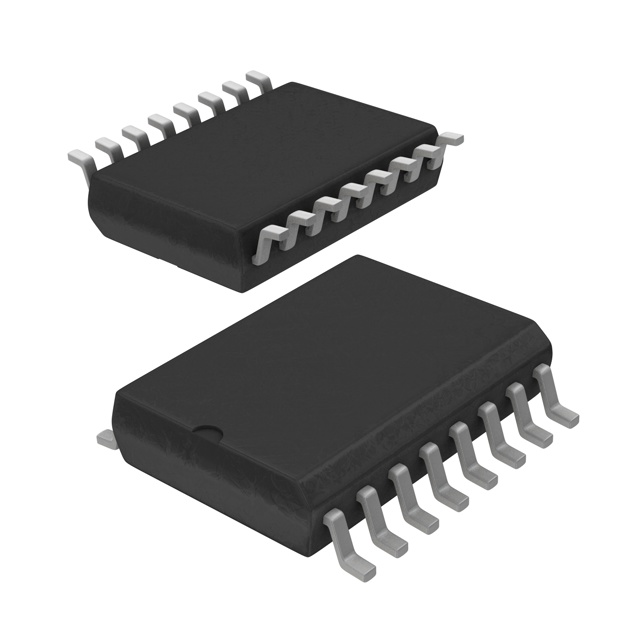

A3966SLBTR

Obsolete

Allegro MicroSystems

IC MTRDRV BIPLR 4.75-5.5V 16SOIC

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

IC MTRDRV BIPLR 4.75-5.5V 16SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	A3966SLBTR

Applications	General Purpose
Current - Output	650 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	16-PowerSOIC
Package / Case	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	16-SOIC
Technology	Bipolar
Voltage - Load [Max]	30 V
Voltage - Load [Min]	4.75 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.75 V

Part	Motor Type - Stepper	Mounting Type	Function	Current - Output	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [y]	Package / Case	Applications	Output Configuration	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Interface
Allegro MicroSystems A3966SLBTR	Bipolar	Surface Mount	Driver - Fully Integrated Control and Power Stage	650 mA	30 V	4.75 V	16-SOIC	4.75 V	5.5 V	16-PowerSOIC	7.5 mm	0.295 in	General Purpose	Half Bridge (4)	Bipolar	150 °C	-20 °C	Parallel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver Bipolar Parallel 16-SOIC
