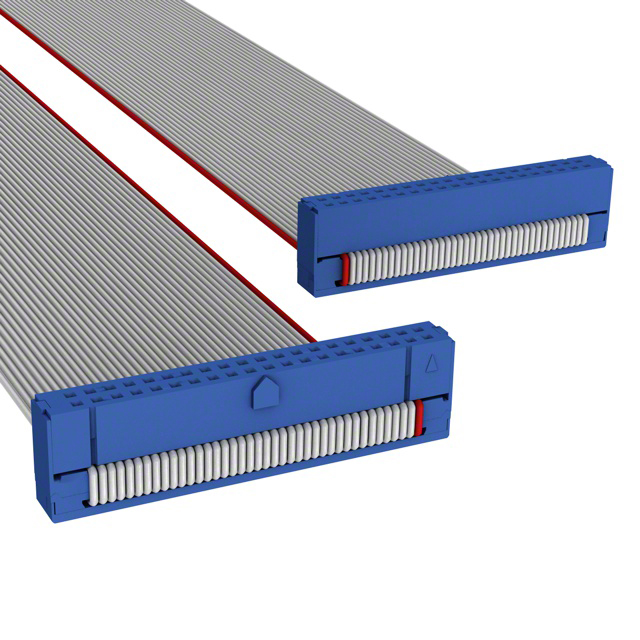

C3DDG-4006G

Active

CW Industries

IDC CABLE - CKR40G/AE40G/CKR40G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR40G/AE40G/CKR40G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DDG-4006G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length	Length	Length	Number of Rows	Shielding	Features	Pitch - Connector	Pitch - Connector	Connector Type	Pitch - Cable	Pitch - Cable	Number of Positions	Contact Finish	Length [x]	Length [x]	Color
CW Industries C3DDG-4006G	10 Áin	0.25 Ám	IDC	152.4 mm	6 "	0.5 '	2	Unshielded	Polarizing Key Strain Relief	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	Gold
CW Industries C3DDG-4018M	10 Áin	0.25 Ám	IDC				2	Unshielded	Polarizing Key Strain Relief	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	Gold	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3DDG-4036M	10 Áin	0.25 Ám	IDC				2	Unshielded	Polarizing Key Strain Relief	0.1 in	2.54 mm	Socket to Socket	0.05 "	1.27 mm	40	Gold	914.4 mm	3 ft	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
