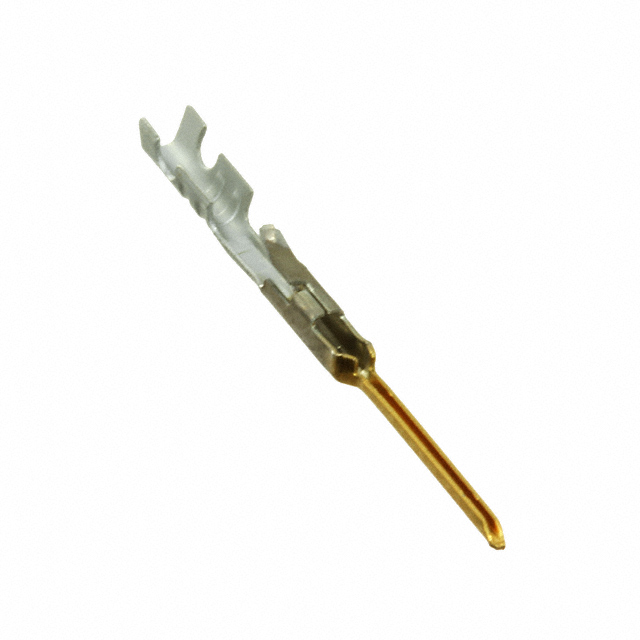

0016020117

Active

Molex

CONN PIN 22-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

Molex

CONN PIN 22-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Termination
Molex 0016020085	0.76 Ám	30 Áin	Socket	32 AWG	36 AWG	Gold	Crimp
Molex 0016020081	0.38 µm	15 µin	Pin	22 AWG	24 AWG	Gold	Crimp
Molex 0016021109	0.38 µm	15 µin	Socket	24 AWG	30 AWG	Gold	Crimp
Molex 0016020108	150 Áin	150 µin	Pin	24 AWG	30 AWG	Tin	Crimp
Molex 0016020102	150 Áin	150 µin	Socket	22 AWG	24 AWG	Tin	Crimp
Molex 0016021117	0.76 Ám	30 Áin	Socket	24 AWG	30 AWG	Gold	Crimp
Molex 0016020080	0.76 Ám	30 Áin	Pin	32 AWG	36 AWG	Gold	Crimp
Molex 0016020117	0.76 Ám	30 Áin	Pin	22 AWG	24 AWG	Gold	Crimp
Molex 0016020114	150 Áin	150 µin	Pin	22 AWG	24 AWG	Tin	Crimp
Molex 0016020096	150 Áin	150 µin	Socket	24 AWG	30 AWG	Tin	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Gold 22-24 AWG Crimp
