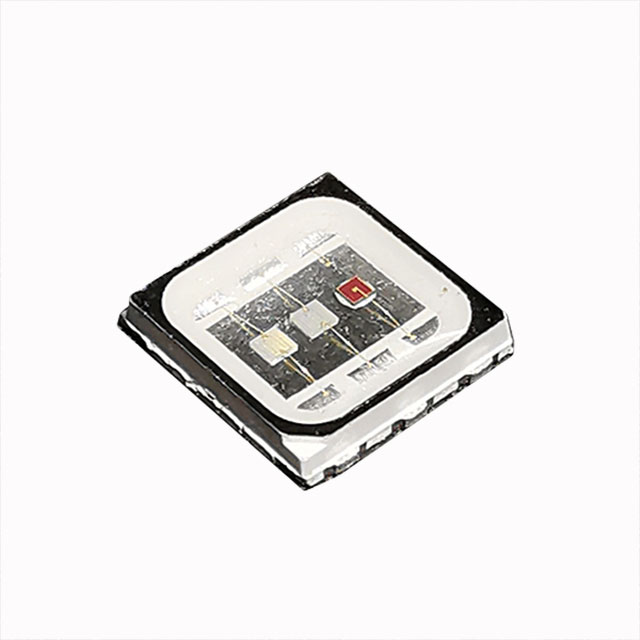

QBHP688-RGB3H
ActiveQT Brightek (QTB)
LED RGB 620NM/525NM/465NM 6PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBHP688-RGB3H
ActiveQT Brightek (QTB)
LED RGB 620NM/525NM/465NM 6PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBHP688-RGB3H |
|---|---|
| Color | Red, Green, Blue |
| Current - Max [custom] | 160 mA |
| Current - Max [custom] | 160 mA |
| Current - Max [custom] | 160 mA |
| Current - Test [custom] | 150 mA |
| Current - Test [custom] | 150 mA |
| Current - Test [custom] | 150 mA |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Lumens/Watt @ Current - Test [custom] | 36 lm/W |
| Lumens/Watt @ Current - Test [custom] | 17 lm/W |
| Lumens/Watt @ Current - Test [custom] | 53 lm/W |
| Luminous Flux @ Current/Temperature [custom] | 28 lm |
| Luminous Flux @ Current/Temperature [custom] | 8 lm |
| Luminous Flux @ Current/Temperature [custom] | 13 lm |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | 6-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.4 V |
| Wavelength | 525 nm, 465 nm, 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.85 | |
| 10 | $ 1.23 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.86 | |||
| Digi-Reel® | 1 | $ 1.85 | ||
| 10 | $ 1.23 | |||
| 100 | $ 0.95 | |||
| 500 | $ 0.86 | |||
| Tape & Reel (TR) | 1000 | $ 0.74 | ||
| 2000 | $ 0.70 | |||
| 5000 | $ 0.68 | |||
| 10000 | $ 0.67 | |||
Description
General part information
QBHP688 Series
LED Lighting Color PLCC6 Red, Green, Blue (RGB) 620nm Red, 525nm Green, 465nm Blue 6-SMD, J-Lead
