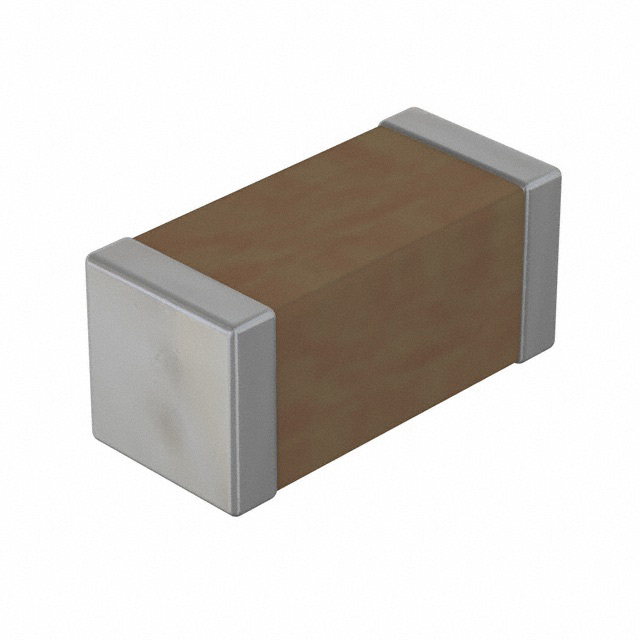

LS1812N222K302NXTM
Knowles Johanson Manufacturing
CAP CER 2200PF 250VAC C0G 1812
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS1812N222K302NXTM
Knowles Johanson Manufacturing
CAP CER 2200PF 250VAC C0G 1812
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS1812N222K302NXTM |
|---|---|
| Applications | Safety |
| Capacitance | 2200 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Ratings [x] | X2 |
| Ratings [y] | Y3 |
| Size / Dimension [x] | 0.18 " |
| Size / Dimension [x] | 4.57 mm |
| Size / Dimension [y] | 3.18 mm |
| Size / Dimension [y] | 0.125 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] | 0.065 in |
| Thickness (Max) [Max] | 1.65 mm |
| Tolerance | 10 % |
| Voltage - Rated | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.68 | |
| 10 | $ 4.58 | |||
| 50 | $ 3.73 | |||
| 100 | $ 3.46 | |||
| Digi-Reel® | 1 | $ 6.68 | ||
| 10 | $ 4.58 | |||
| 50 | $ 3.73 | |||
| 100 | $ 3.46 | |||
| Tape & Reel (TR) | 500 | $ 3.01 | ||
| 1000 | $ 2.87 | |||
| 1500 | $ 2.79 | |||
| 2500 | $ 2.71 | |||
| 3500 | $ 2.67 | |||
Description
General part information
LS1812N Series
2200 pF ±10% 250VAC Ceramic Capacitor C0G, NP0 1812 (4532 Metric)
