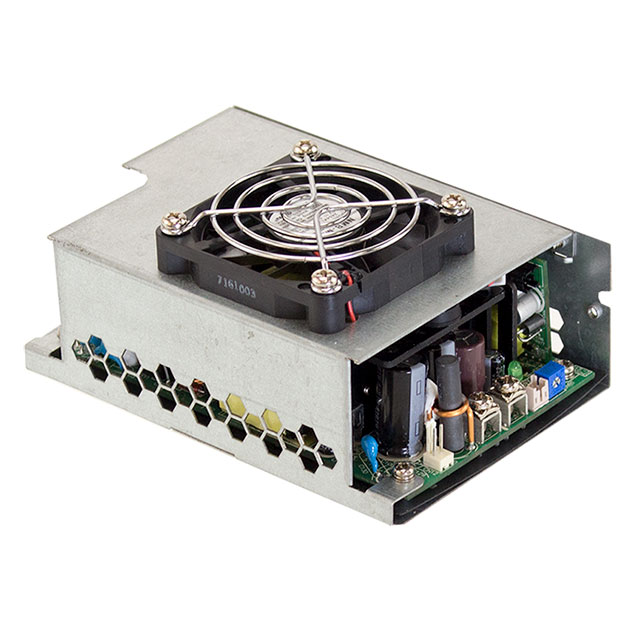

RPS-500-24-TF

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 499W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPS-500-24-TF

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 499W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-500-24-TF

Applications	Medical
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	20.8 A
Efficiency	93 %
Features	PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	499 W
Size / Dimension [x]	5.12 "
Size / Dimension [x]	130 mm
Size / Dimension [y]	86 mm
Size / Dimension [y]	3.39 in
Size / Dimension [z]	58.5 mm
Size / Dimension [z]	2.3 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

RPS-500 Series

Part	Type	Current - Output 1	Applications	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Output 1	Efficiency	Power (Watts)
MEAN WELL USA Inc. RPS-500-18-TF	Enclosed	27.8 A	Medical	500 W	1	70 °C	-30 °C	4000 V	5.12 "	58.5 mm	2.3 "	130 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	18 V	92.5 %
MEAN WELL USA Inc. RPS-500-18	Open Frame	17.8 A	Medical	320 W 500 W	1	70 °C	-30 °C	4000 V	5 in	43 mm	1.69 in	127 mm	76.2 mm	3 "	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	18 V	92.5 %
MEAN WELL USA Inc. RPS-500-12-SF	Enclosed	41.6 A	Medical	499 W	1	70 °C	-30 °C	4000 V	6.3 "	43 mm	1.69 in	160 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	12 V	91 %
MEAN WELL USA Inc. RPS-500-24	Open Frame	13.4 A	Medical	322 W	1	70 °C	-30 °C	4000 V	5 in	43 mm	1.69 in	127 mm	76.2 mm	3 "	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	24 V	93 %	500 W
MEAN WELL USA Inc. RPS-500-24-TF	Enclosed	20.8 A	Medical	499 W	1	70 °C	-30 °C	4000 V	5.12 "	58.5 mm	2.3 "	130 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	24 V	93 %
MEAN WELL USA Inc. RPS-500-48-TF	Enclosed	10.4 A	Medical	499 W	1	70 °C	-30 °C	4000 V	5.12 "	58.5 mm	2.3 "	130 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	48 V	94 %
MEAN WELL USA Inc. RPS-500-48	Open Frame	6.7 A	Medical	322 W	1	70 °C	-30 °C	4000 V	5 in	43 mm	1.69 in	127 mm	76.2 mm	3 "	Adjustable Output PFC Remote Sense Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	48 V	94 %	500 W
MEAN WELL USA Inc. RPS-500-27-SF	Enclosed	18.5 A	Medical	500 W	1	70 °C	-30 °C	4000 V	6.3 "	43 mm	1.69 in	160 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	27 V	93.5 %
MEAN WELL USA Inc. RPS-500-15-SF	Enclosed	33.3 A	Medical	500 W	1	70 °C	-30 °C	4000 V	6.3 "	43 mm	1.69 in	160 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	15 V	92 %
MEAN WELL USA Inc. RPS-500-24-SF	Enclosed	20.8 A	Medical	499 W	1	70 °C	-30 °C	4000 V	6.3 "	43 mm	1.69 in	160 mm	86 mm	3.39 in	Adjustable Output PFC Remote Sense Standby Output Universal Input	Chassis Mount	80 VAC 113 VDC	264 VAC 370 VDC	CB CE cURus EAC TUV	24 V	93 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.34
		5	$ 114.32
		10	$ 111.42
		25	$ 107.70

Description

General part information

RPS-500 Series

Enclosed AC DC Converters 1 Output 24V 80 ~ 264 VAC, 113 ~ 370 VDC Input
