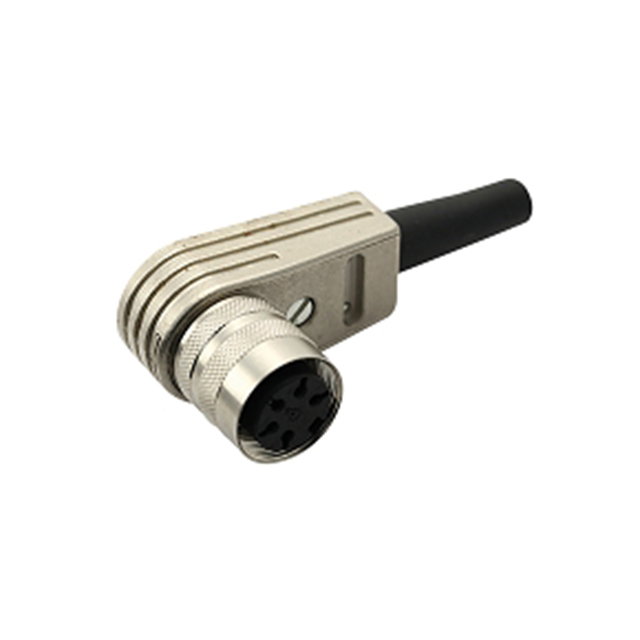

T 3401 058

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3401 058

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-6
Shielding	Shielded
Voltage Rating	250 VDC

Part	Mounting Type	Shell Finish	Color	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Orientation	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Features	Connector Type	Number of Positions	Primary Material	Shell Size - Insert
Amphenol Tuchel Industrial T 3401 058	Free Hanging (In-Line) Right Angle	Nickel	Silver	Die Cast	100 °C	-40 °C	Shielded	IP40	Keyed	7 A	Gold	250 VDC	Strain Relief	Female Sockets Plug	6	Metal	M16-6
Amphenol Tuchel Industrial T 3401 005	Free Hanging (In-Line) Right Angle	Nickel	Silver	Die Cast	100 °C	-40 °C	Shielded	IP40	Keyed	7 A	Silver	250 VDC	Strain Relief	Female Sockets Plug	6	Metal	M16-6
Amphenol Tuchel Industrial T 3401 002	Free Hanging (In-Line)	Nickel	Silver	Die Cast	100 °C	-40 °C	Shielded	IP40	Keyed	7 A	Silver	250 VDC	Cable Clamp Strain Relief	Female Sockets Plug	6	Metal	M16-6
Amphenol Tuchel Industrial T 3401 018	Free Hanging (In-Line)	Nickel	Silver	Die Cast	100 °C	-40 °C	Shielded	IP40	Keyed	7 A	Gold	250 VDC	Strain Relief	Female Sockets Plug	6	Metal	M16-6
Amphenol Tuchel Industrial T 3401 013	Free Hanging (In-Line)	Nickel	Silver	Die Cast	100 °C	-40 °C	Shielded	IP40	Keyed	7 A	Silver	250 VDC	Strain Relief	Female Sockets Plug	6	Metal	M16-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.69

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
