J107F1AS1512VDC.45

Active

CIT Relay and Switch

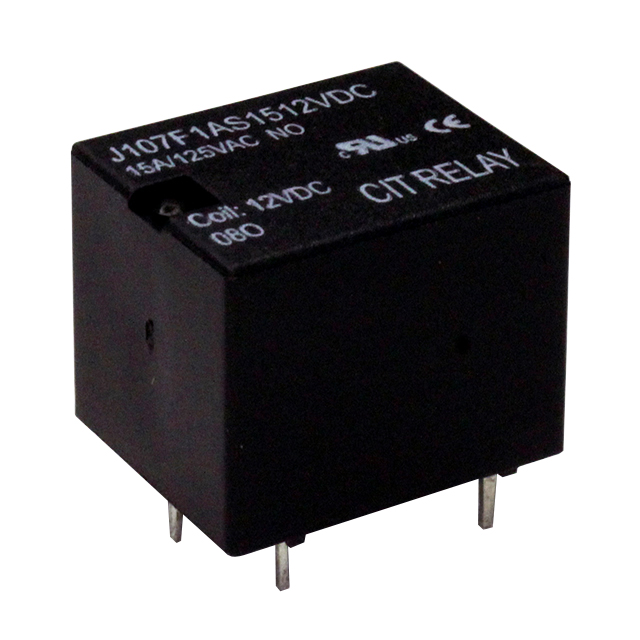

RELAY GEN PURPOSE SPST 15A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J107F1AS1512VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 15A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J107F1AS1512VDC.45

Approval Agency	cURus, TUV
Coil Current	37.5 mA
Coil Insulation	Class F
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	15 A
Load - Max Switching	5700 VA, 1650 W
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage	110 VDC, 380 VAC
Termination Style	PC Pin

J107F1AS Series

Part	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Switching Voltage	Coil Insulation	Contact Form	Seal Rating	Coil Current	Release Time	Approval Agency	Relay Type	Must Release Voltage	Load - Max Switching	Termination Style	Coil Resistance	Operate Time	Coil Type	Coil Voltage	Contact Rating (Current)
CIT Relay and Switch J107F1AS1548VDC.80	36 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	16.7 mA	5 ms	cURus TUV	General Purpose	4.8 VDC	1650 W 5700 VA	PC Pin	2.88 kOhms	10 ms	Non Latching	48 VDC	15 A
CIT Relay and Switch J107F1AS153VDC.80	2.25 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	272.7 mA	5 ms	cURus TUV	General Purpose	0.3 VDC	1650 W 5700 VA	PC Pin	11 Ohms	10 ms	Non Latching		15 A
CIT Relay and Switch J107F1AS209VDC.45	6.75 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	50 mA	5 ms	cURus TUV	General Purpose	0.9 VDC	2200 W 7600 VA	PC Pin	180 Ohms	10 ms	Non Latching	9 VDC	20 A
CIT Relay and Switch J107F1AS203VDC.45	2.25 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	150 mA	5 ms	cURus TUV	General Purpose	0.3 VDC	2200 W 7600 VA	PC Pin	20 Ohms	10 ms	Non Latching		20 A
CIT Relay and Switch J107F1AS1248VDC.45	36 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	9.4 mA	5 ms	cURus TUV	General Purpose	4.8 VDC	1320 W 4560 VA	PC Pin	5.12 kOhms	10 ms	Non Latching	48 VDC	12 A
CIT Relay and Switch J107F1AS123VDC.36	2.25 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	120 mA	5 ms	cURus TUV	General Purpose	0.3 VDC	1320 W 4560 VA	PC Pin	25 Ohms	10 ms	Non Latching		12 A
CIT Relay and Switch J107F1AS1212VDC.36	9 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	30 mA	5 ms	cURus TUV	General Purpose	1.2 VDC	1320 W 4560 VA	PC Pin	400 Ohms	10 ms	Non Latching	12 VDC	12 A
CIT Relay and Switch J107F1AS203VDC.80	2.25 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	272.7 mA	5 ms	cURus TUV	General Purpose	0.3 VDC	2200 W 7600 VA	PC Pin	11 Ohms	10 ms	Non Latching		20 A
CIT Relay and Switch J107F1AS1512VDC.45	9 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	37.5 mA	5 ms	cURus TUV	General Purpose	1.2 VDC	1650 W 5700 VA	PC Pin	320 Ohms	10 ms	Non Latching	12 VDC	15 A
CIT Relay and Switch J107F1AS129VDC.36	6.75 VDC	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	Through Hole	110 VDC 380 VAC	Class F	SPST-NO (1 Form A)	Sealed - Fully	40 mA	5 ms	cURus TUV	General Purpose	0.9 VDC	1320 W 4560 VA	PC Pin	225 Ohms	10 ms	Non Latching	9 VDC	12 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.57

Description

General part information

J107F1AS Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
