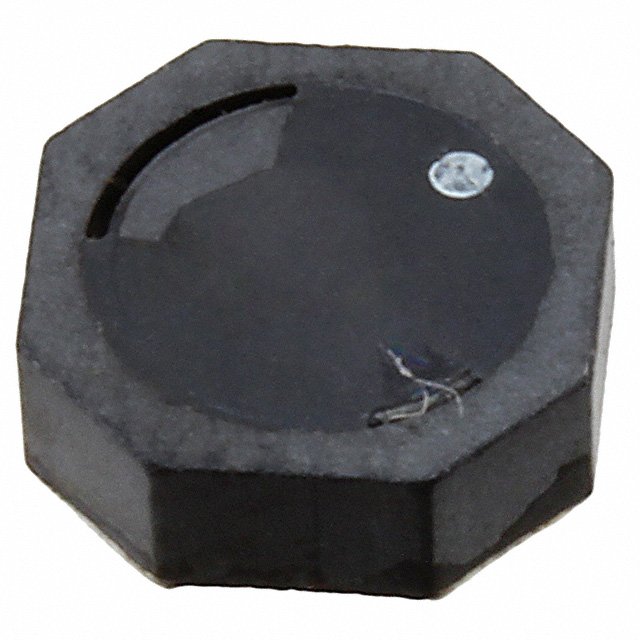

SRU6025-221Y
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 220UH 30% 100KHZ 20Q-FACTOR FERRITE 0.42A 1.25OHM DCR T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRU6025-221Y
ActiveBourns Inc.
INDUCTOR POWER SHIELDED WIREWOUND 220UH 30% 100KHZ 20Q-FACTOR FERRITE 0.42A 1.25OHM DCR T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRU6025-221Y |
|---|---|
| Current - Saturation (Isat) | 240 mA |
| Current Rating (Amps) | 0.42 A |
| DC Resistance (DCR) [Max] | 1.25 Ohm |
| Frequency - Self Resonant | 4 MHz |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 20, 2.52 MHz |
| Shielding | Shielded |
| Size / Dimension [x] | 0.256 " |
| Size / Dimension [x] | 6.5 mm |
| Size / Dimension [y] | 6.2 mm |
| Size / Dimension [y] | 0.244 in |
| Tolerance | 30 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRU6025 Series
220 µH Shielded Drum Core, Wirewound Inductor 420 mA 1.25Ohm Max Nonstandard
