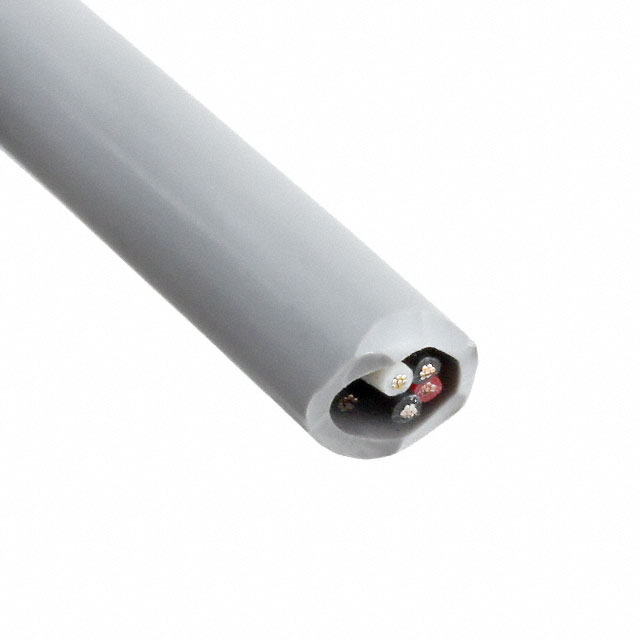

C0601A.41.10
ActivePrysmian Group
MULTI-PAIR 4COND 24AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
C0601A.41.10
ActivePrysmian Group
MULTI-PAIR 4COND 24AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0601A.41.10 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.44 mm |
| Jacket (Insulation) Diameter [diameter] | 0.214 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft, 50 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.55 | |
| 1 | $ 47.10 | |||
| 5 | $ 38.54 | |||
| 5 | $ 72.45 | |||
| 10 | $ 56.35 | |||
| 10 | $ 29.98 | |||
| Spool | 1 | $ 474.00 | ||
| 2 | $ 450.70 | |||
| 3 | $ 437.53 | |||
| 5 | $ 421.38 | |||
| 7 | $ 411.01 | |||
| 10 | $ 400.25 | |||
| 25 | $ 373.62 | |||
Description
General part information
C0601 Series
4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
