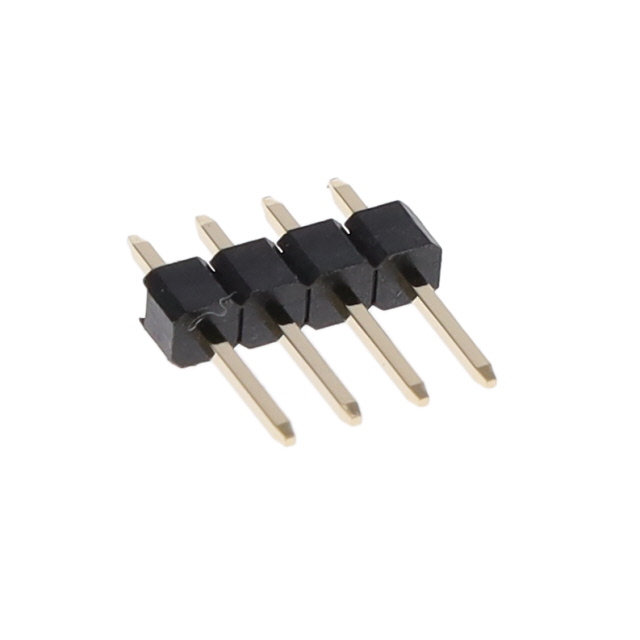

G800W304018EU

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PIN HEADER 2.54MM PITCH STR DIP,

Technical Specifications

Parameters and characteristics for this part

Specification	G800W304018EU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.457 "
Overall Contact Length	11.6 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Termination	Overall Contact Length	Overall Contact Length	Shrouding	Insulation Material	Connector Type	Contact Finish Thickness - Post	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Contact Material	Insulation Height [z]	Insulation Height [z]	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Shape	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (Commercial Products) G800W304018EU	Solder	0.457 "	11.6 mm	Unshrouded	Nylon 6T Polyamide (PA6T)	Header	Flash	Male Pin	0.1 in	2.54 mm	UL94 V-0	Through Hole	4	Flash	Gold	6.1 mm	0.24 in	All	Gold	1	Brass	0.098 in	2.5 mm	Black	Push-Pull	0.118 in	3 mm	Square	3 A	-25 °C	105 ░C
Amphenol ICC (Commercial Products) G800W303018EU	Solder	0.457 "	11.6 mm	Unshrouded	Nylon 6T Polyamide (PA6T)	Header	Flash	Male Pin	0.1 in	2.54 mm	UL94 V-0	Through Hole		Flash	Gold	6.1 mm	0.24 in	All	Gold	1	Brass	0.098 in	2.5 mm	Black	Push-Pull	0.118 in	3 mm	Square	3 A	-25 °C	105 ░C
Amphenol ICC (Commercial Products) G800W305018EU	Solder	0.457 "	11.6 mm	Unshrouded	Nylon 6T Polyamide (PA6T)	Header	Flash	Male Pin	0.1 in	2.54 mm	UL94 V-0	Through Hole		Flash	Gold	6.1 mm	0.24 in	All	Gold	1	Brass	0.098 in	2.5 mm	Black	Push-Pull	0.118 in	3 mm	Square	3 A	-25 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)
