100AWSP1T1B1M1QEH

Active

E-Switch

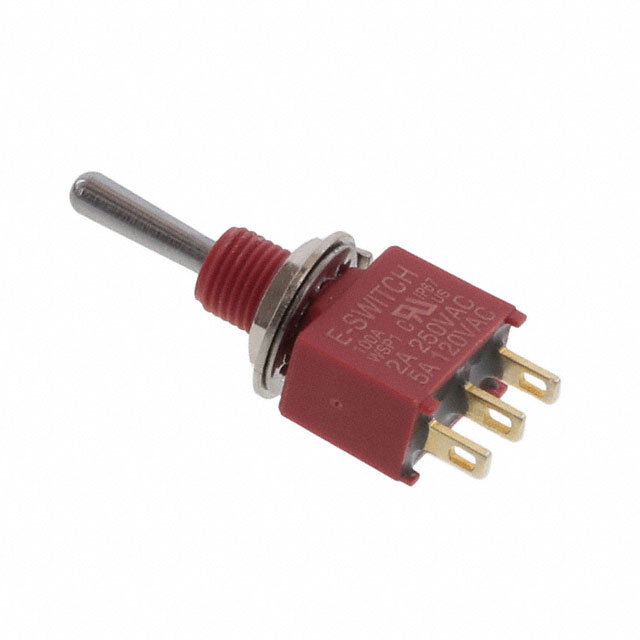

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

100AWSP1T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	100AWSP1T1B1M1QEH

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

100AWSP1 Series

Part	Voltage Rating - DC	Switch Function	Actuator Type	Termination Style	Voltage Rating - AC	Illumination	Features	Actuator Length [x]	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Electrical Life	Ingress Protection	Actuator Material	Circuit	Mounting Type
E-Switch 100AWSP1T2B1M1QEH	28 V	On-On	Standard Round	Solder Lug	120 V	Non-Illuminated	Epoxy Sealed Terminals	5.08 mm	1/4-40	-30 ░C	85 °C	5 A	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT
E-Switch 100AWSP1T1B1M7QE	28 V	On-On	Standard Round	PC Pin	120 V	Non-Illuminated	Epoxy Sealed Terminals	10.55 mm	1/4-40	-30 ░C	85 °C	5 A	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Right Angle Through Hole Vertical
E-Switch 100AWSP1T1B1M1RE	20 V	On-On	Standard Round	Solder Lug	20 V	Non-Illuminated	Epoxy Sealed Terminals	10.41 mm	1/4-40	-30 ░C	85 °C	0.4 VA	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT
E-Switch 100AWSP1T1B1M1QEH	28 V	On-On	Standard Round	Solder Lug	120 V	Non-Illuminated	Epoxy Sealed Terminals	10.41 mm	1/4-40	-30 ░C	85 °C	5 A	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT
E-Switch 100AWSP1T2B4VS3QE	28 V	On-On	Standard Round	PC Pin	120 V	Non-Illuminated	Epoxy Sealed Terminals	7.62 mm	Unthreaded	-30 ░C	85 °C	5 A		30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Through Hole
E-Switch 100AWSP1T2B1M7QEH	28 V	On-On	Standard Round	PC Pin	120 V	Non-Illuminated	Epoxy Sealed Terminals	5.08 mm	1/4-40	-30 ░C	85 °C	5 A	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Panel Mount Right Angle Vertical
E-Switch 100AWSP1T2B1M1REH	20 V	On-On	Standard Round	Solder Lug	20 V	Non-Illuminated	Epoxy Sealed Terminals	5.47 mm	1/4-40	-30 ░C	85 °C	0.4 VA	0.25 in	30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT
E-Switch 100AWSP1T1B4VS21RE	20 V	On-On	Standard Round	PC Pin	20 V	Non-Illuminated	Epoxy Sealed Terminals	0.5 in	Unthreaded	-30 ░C	85 °C	0.4 VA		30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Through Hole
E-Switch 100AWSP1T1B4M2RE	20 V	On-On	Standard Round	PC Pin	20 V	Non-Illuminated	Epoxy Sealed Terminals	0.5 in	Unthreaded	-30 ░C	85 °C	0.4 VA		30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Through Hole
E-Switch 100AWSP1T2B4M7QE	28 V	On-On	Standard Round	PC Pin	120 V	Non-Illuminated	Epoxy Sealed Terminals	7.62 mm	Unthreaded	-30 ░C	85 °C	5 A		30000 Cycles	IP67 - Dust Tight Waterproof	Brass Chrome Plated	SPDT	Right Angle Through Hole Vertical
