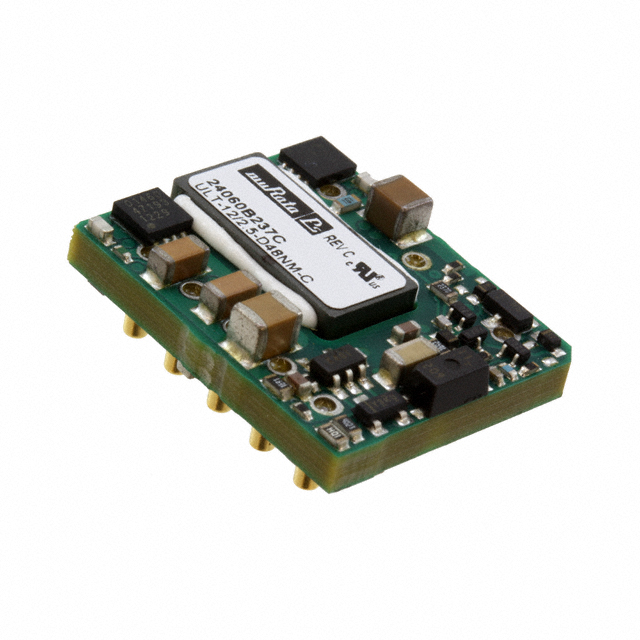

ULT-12/2.5-D48NM-C
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, THIRTY SECOND BRICK, DOSA, 2:1, 30 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
ULT-12/2.5-D48NM-C
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, THIRTY SECOND BRICK, DOSA, 2:1, 30 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ULT-12/2.5-D48NM-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 91 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 1/32 Brick |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 0.92 in |
| Size / Dimension [x] | 23.4 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.1 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ULT-12 Series
Isolated Module DC DC Converter 1 Output 12V 2.5A 36V - 75V Input
