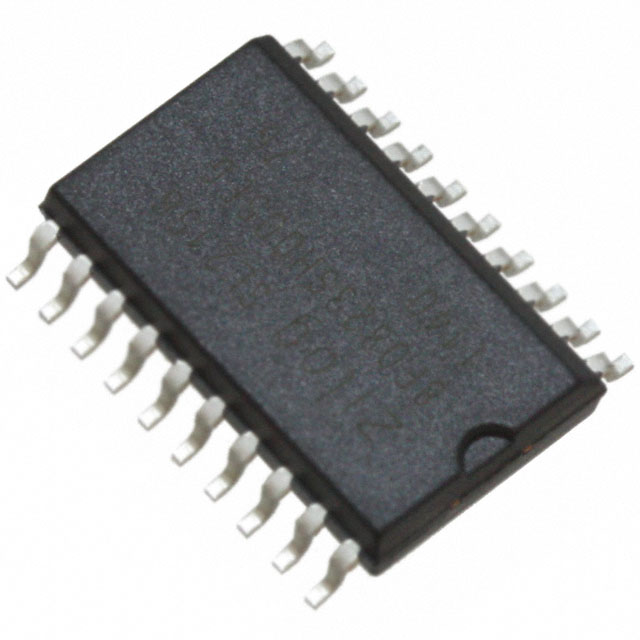

Z8F0823SH005EG2156

Active

Zilog

IC MCU 8BIT 8KB FLASH 20SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZ8F0823 Series Appl Note Z8,XP/Z8 Encore! Quick Start +1

Z8F0823SH005EG2156

Active

Zilog

IC MCU 8BIT 8KB FLASH 20SOIC

Deep-Dive with AI

DocumentsZ8F0823 Series Appl Note Z8,XP/Z8 Encore! Quick Start +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z8F0823SH005EG2156

Connectivity	UART/USART, IrDA
Core Processor	eZ8
Core Size	8-Bit
Data Converters	7, 10 b
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Peripherals	WDT, LED, PWM, POR, Brown-out Detect/Reset
Program Memory Type	FLASH
RAM Size	1 K
Speed	5 MHz
Supplier Device Package	20-SOIC
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Z8F0823 Series

Part	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Data Converters [custom]	Data Converters [custom]	Mounting Type	Program Memory Type	Number of I/O	Oscillator Type	Core Size	Speed	Package / Case	Package / Case [y]	Package / Case [x]	Connectivity	Core Processor	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Data Converters	Package / Case [y]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]
Zilog Z8F0823SB005SG	Brown-out Detect/Reset LED POR PWM WDT	70 °C	0 °C	1 K	10	4	Surface Mount	FLASH	6 I/O	Internal	8-Bit	5 MHz	8-SOIC	3.9 mm	0.154 in	IrDA UART/USART	eZ8	3.6 V	2.7 V
Zilog Z8F0823SH005EG2156	Brown-out Detect/Reset LED POR PWM WDT	105 °C	-40 °C	1 K			Surface Mount	FLASH	16	Internal	8-Bit	5 MHz	20-SOIC	0.295 in		IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b	7.5 mm	20-SOIC
Zilog Z8F0823SH005SG2156	Brown-out Detect/Reset LED POR PWM WDT	70 °C	0 °C	1 K			Surface Mount	FLASH	16	Internal	8-Bit	5 MHz	20-SOIC	0.295 in		IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b	7.5 mm	20-SOIC
Zilog Z8F0823HH005EG	Brown-out Detect/Reset LED POR PWM WDT	105 °C	-40 °C	1 K			Surface Mount	FLASH	16	Internal	8-Bit	5 MHz	20-SSOP			IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b
Zilog Z8F0823PJ005SG2156	Brown-out Detect/Reset LED POR PWM WDT	70 °C	0 °C	1 K	10	8	Through Hole	FLASH	22	Internal	8-Bit	5 MHz	28-DIP			IrDA UART/USART	eZ8	3.6 V	2.7 V			28-PDIP	0.6 in	15.24 mm
Zilog Z8F0823PH005SG2156	Brown-out Detect/Reset LED POR PWM WDT	70 °C	0 °C	1 K			Through Hole	FLASH	16	Internal	8-Bit	5 MHz	20-DIP			IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b		20-PDIP		0.3 in	7.62 mm
Zilog Z8F0823PH005EG2156	Brown-out Detect/Reset LED POR PWM WDT	105 °C	-40 °C	1 K			Through Hole	FLASH	16	Internal	8-Bit	5 MHz	20-DIP			IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b		20-PDIP		0.3 in	7.62 mm
Zilog Z8F0823SB005EG	Brown-out Detect/Reset LED POR PWM WDT	105 °C	-40 °C	1 K	10	4	Surface Mount	FLASH	6 I/O	Internal	8-Bit	20 MHz	8-SOIC	3.9 mm	0.154 in	IrDA UART/USART	eZ8	3.6 V	2.7 V
Zilog Z8F0823HJ005EG	Brown-out Detect/Reset LED POR PWM WDT	105 °C	-40 °C	1 K	10	8	Surface Mount	FLASH	22	Internal	8-Bit	5 MHz	28-SSOP			IrDA UART/USART	eZ8	3.6 V	2.7 V							0.209 in	5.3 mm
Zilog Z8F0823HH005SG2156	Brown-out Detect/Reset LED POR PWM WDT	70 °C	0 °C	1 K			Surface Mount	FLASH	16	Internal	8-Bit	5 MHz	20-SSOP			IrDA UART/USART	eZ8	3.6 V	2.7 V	7 10 b		20-SSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3306	$ 1.98

Description

General part information

Z8F0823 Series

eZ8 Encore!® XP® Microcontroller IC 8-Bit 5MHz 8KB (8K x 8) FLASH 20-SOIC

Documents

Technical documentation and resources

Z8F0823 Series Appl Note

Datasheet

Z8,XP/Z8 Encore! Quick Start

Datasheet
