GP5000S35-0.100-02-0816

Active

Bergquist - Henkel

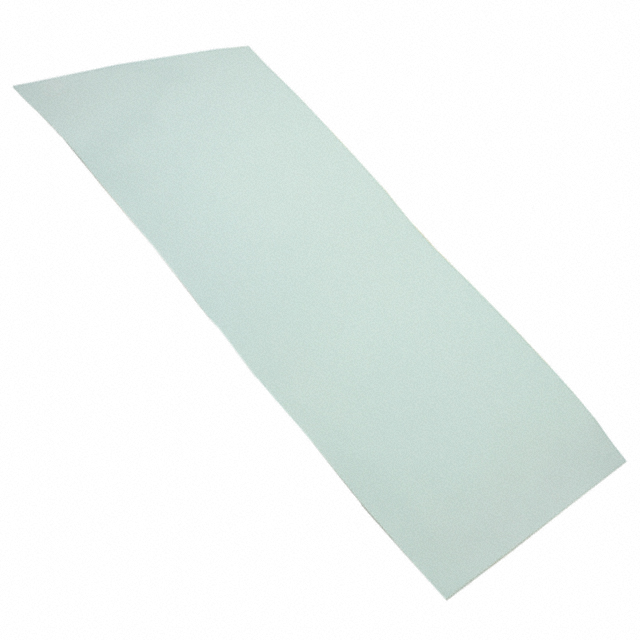

THERM PAD 406.4X203.2MM GREEN

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 406.4X203.2MM GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	GP5000S35-0.100-02-0816

Adhesive	Tacky - Both Sides
Backing, Carrier	Fiberglass
Color	Green
Outline [x]	406.4 mm
Outline [y]	203.2 mm
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	95 °F
Storage/Refrigeration Temperature [Max]	35 °C
Thermal Conductivity	5 W/m-K
Thickness	2.54 mm
Thickness	0.1 in

Part	Adhesive	Backing, Carrier	Shelf Life Start	Shape	Color	Outline [x]	Outline [y]	Shelf Life	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Thickness	Thickness	Thermal Conductivity
Bergquist - Henkel GP5000S35-0.100-02-0816	Tacky - Both Sides	Fiberglass	Date of Manufacture	Rectangular	Green	406.4 mm	203.2 mm	12 Months	95 °F	35 °C	2.54 mm	0.1 in	5 W/m-K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Green 406.40mm x 203.20mm Rectangular Tacky - Both Sides
