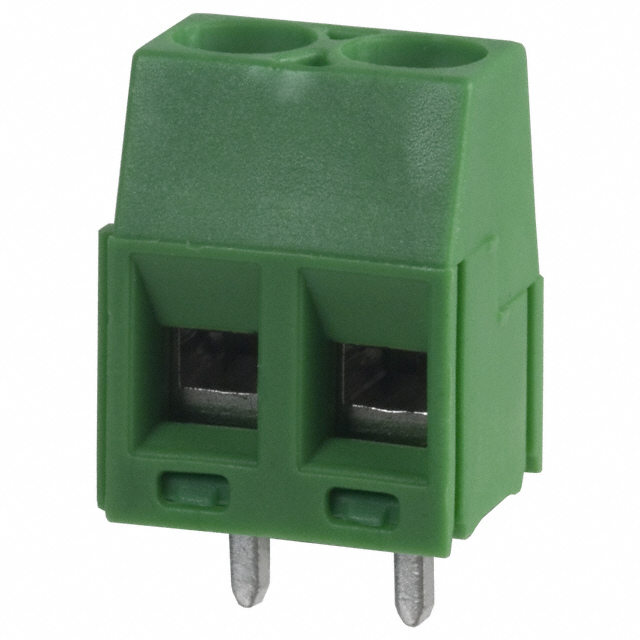

EDZ350/2

Active

On Shore Technology Inc.

TERM BLK 2P SIDE ENT 5.08MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2P SIDE ENT 5.08MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ350/2

Clamp Material - Plating	Copper
Color	Green
Contact Material - Plating [custom]	Brass
Current	16 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Screw Thread	Positions Per Level	Housing Material	Clamp Material - Plating	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Contact Material - Plating [custom]	Current	Wire Termination	Number of Levels	Mating Orientation	Color	Voltage
On Shore Technology Inc. EDZ350/2	M3	2	Polyamide (PA) Nylon	Copper	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	-30 ░C	105 ░C	12 AWG	28 AWG	Through Hole	Brass	16 A	Screw - Rising Cage Clamp	1	Horizontal with Board	Green	300 V
On Shore Technology Inc. EDZ350/3	M3	3	Polyamide (PA) Nylon	Copper	4.4 Lb-In	0.5 Nm	0.2 in	5.08 mm	-30 ░C	105 ░C	12 AWG	28 AWG	Through Hole	Brass	16 A	Screw - Rising Cage Clamp	1	Horizontal with Board	Green	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
