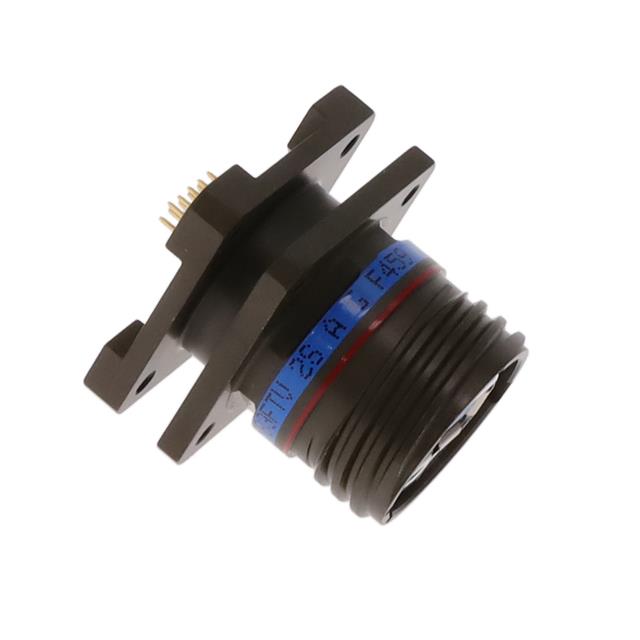

USB3FTV2SAGF459

Active

Amphenol Socapex

USBFTV SIZE 15 38999 SHELL SQUAR

Search across all available documentation for this part.

Active

Amphenol Socapex

USBFTV SIZE 15 38999 SHELL SQUAR

Technical Specifications

Parameters and characteristics for this part

Specification	USB3FTV2SAGF459

Connector Type	USB-A (USB TYPE-A)
Features	Circular Threaded Coupling
Gender	Receptacle
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Aluminum
Shielding	Shielded
Termination	Solder

Part	Mating Cycles	Ingress Protection	Mounting Type	Mounting Feature	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Gender	Features	Material Flammability Rating	Shell/Shielding Material	Number of Ports	Number of Contacts	Connector Type	Convert From (Adapter End)	Convert To (Adapter End)
Amphenol Socapex USB3FTV2SAGF459	500	IP68 - Dust Tight Waterproof	Panel Mount Through Hole	Bulkhead - Front Side Nut	Solder	85 °C	-40 °C	Shielded	Receptacle	Circular Threaded Coupling	UL94 V-0	Aluminum	1	9	USB-A (USB TYPE-A)
Amphenol Socapex USB3FTV2AZN																USB-A (USB TYPE-A) Receptacle	Receptacle USB-A (USB TYPE-A)
Amphenol Socapex USB3FTV2SANF459	500	IP68 - Dust Tight Waterproof	Panel Mount Through Hole	Bulkhead - Front Side Nut	Solder	85 °C	-40 °C	Shielded	Receptacle	Circular Threaded Coupling	UL94 V-0	Aluminum	1	9	USB-A (USB TYPE-A)
Amphenol Socapex USB3FTV2AG																USB-A (USB TYPE-A) Receptacle	Receptacle USB-A (USB TYPE-A)
Amphenol Socapex USB3FTV2SAZNF459	500	IP68 - Dust Tight Waterproof	Panel Mount Through Hole	Bulkhead - Front Side Nut	Solder	85 °C	-40 °C	Shielded	Receptacle	Circular Threaded Coupling	UL94 V-0	Aluminum	1	9	USB-A (USB TYPE-A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Panel Mount, Through Hole
