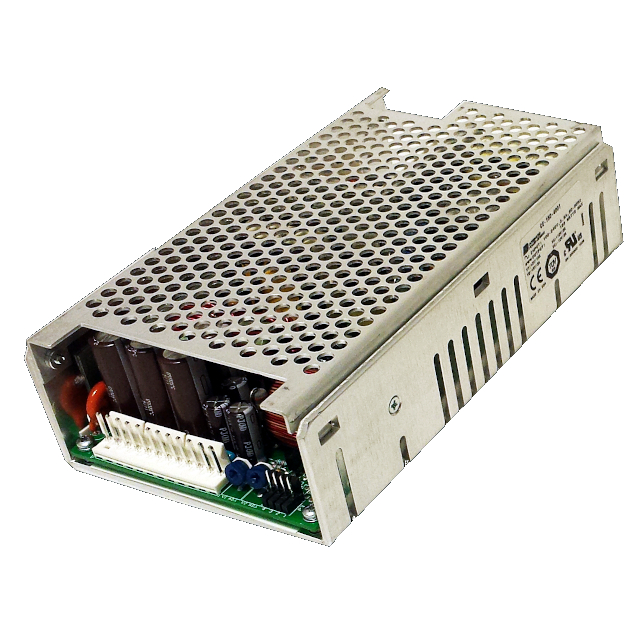

1011584CO

Active

Integrated Power Designs

CE-150-3003CO

Search across all available documentation for this part.

Active

Integrated Power Designs

CE-150-3003CO

Technical Specifications

Parameters and characteristics for this part

Specification	1011584CO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	5 A
Current - Output 2	5 A
Current - Output 3	2 A
Efficiency	74 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	150 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	48.8 mm
Size / Dimension [z]	1.92 "
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Output 1	15 V
Voltage - Output 2	-15 V
Voltage - Output 3	5 V

Part	Power (Watts)	Current - Output 3	Voltage - Output 1	Standard Number	Applications	Voltage - Output 3	Mounting Type	Current - Output 2	Voltage - Output 2	Number of Outputs	Efficiency	Approval Agency	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Integrated Power Designs 1011584CO	150 W	2 A	15 V	60601-1 62368-1	ITE (Commercial) Medical	5 V	Chassis Mount	5 A	-15 V	3	74 %	CE cURus TUV UKCA	Adjustable Output Remote Sense Universal Input	Enclosed	70 °C	0 °C	5 A	177.8 mm	48.8 mm	1.92 "	7 "	4 "	101.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 15V -15V 5V 85 ~ 264 VAC Input
