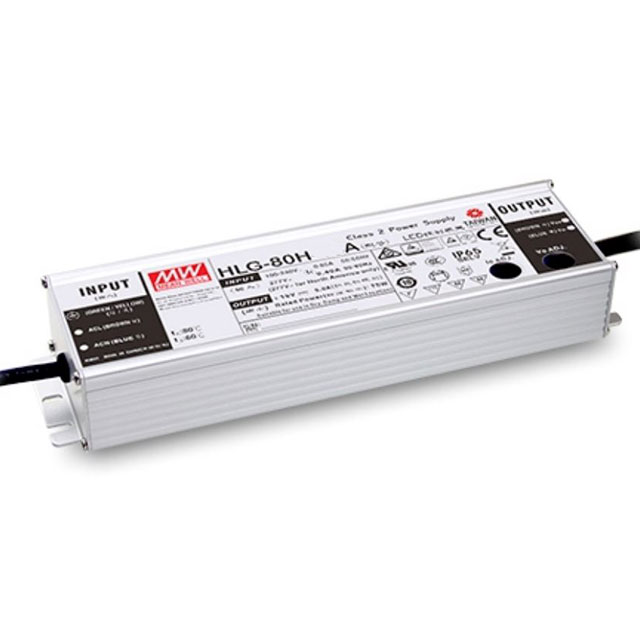

HLG-80H-54AB
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-80H-54AB
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-80H-54AB |
|---|---|
| Approval Agency | RCM, CCC, cURus, CB, UL, PSE, EAC, KC, TUV, cULus, CE |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | 91 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 81 W |
| Ratings | IP65 |
| Size / Dimension [x] | 171.8 mm |
| Size / Dimension [x] | 6.76 in |
| Size / Dimension [y] | 61.5 mm |
| Size / Dimension [y] | 2.42 in |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 54 V |
HLG-80H Series
| Part | Voltage - Output [Min] | Voltage - Output [Max] | Approval Agency | Type | Termination Style | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Topology | Ratings | Efficiency | Voltage - Input (Min) [Min] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Dimming | Features | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Isolation | Current - Output (Max) [Max] | Power (Watts) | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 21.6 V | 36 V | CB CCC CE cULus cURus PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP67 | 91 % | 90 VAC | Chassis Mount | -40 °C | 80 C | Analog PWM | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 2.3 A | 83 W | |
MEAN WELL USA Inc. | CB CCC CE cURus EAC RCM TUV | Constant Current | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91.5 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OTP OVP SCP | 1 | 305 VAC | 3750 V | 700 mA | 90 W | ||||
MEAN WELL USA Inc. | CB CCC CE cULus cURus EAC KC PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 1.7 A | 82 W | 48 V | |||
MEAN WELL USA Inc. | CB CCC CE cULus cURus EAC KC PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 1.5 A | 81 W | 54 V | |||
MEAN WELL USA Inc. | 22 V | 27 V | CB CCC CE cULus cURus PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 90.5 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 3.4 A | 82 W | ||
MEAN WELL USA Inc. | CB CCC CE cULus cURus EAC KC PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91 % | 90 VAC | Chassis Mount | -40 °C | 80 C | Analog PWM | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 2.3 A | 83 W | 36 V | ||
MEAN WELL USA Inc. | 7.2 V | 12 V | CB CCC CE cULus cURus PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP67 | 88 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 5 A | 60 W | ||
MEAN WELL USA Inc. | CB CCC CE cULus cURus EAC KC PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91 % | 90 VAC | Chassis Mount | -40 °C | 80 C | Analog PWM | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 1.95 A | 82 W | 42 V | ||
MEAN WELL USA Inc. | CB CCC CE cULus cURus PSE RCM TUV UL | Constant Current Voltage | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP67 | 89 % | 90 VAC | Chassis Mount | -40 °C | 80 C | Analog PWM | OCP OTP OVP SCP | 1 | 305 VAC | 3750 V | 5 A | 75 W | |||
MEAN WELL USA Inc. | 128 V | 257 V | CB CCC CE cURus PSE RCM TUV | Constant Current | Wire Leads | 38.8 mm | 1.53 in | 61.5 mm | 171.8 mm | 6.76 in | 2.42 in | AC DC Converter | IP65 | 91.5 % | 90 VAC | Chassis Mount | -40 °C | 80 C | OTP OVP SCP | 1 | 305 VAC | 3750 V | 350 mA | 90 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 49.14 | |
| 5 | $ 47.73 | |||
| 10 | $ 45.63 | |||
| 25 | $ 44.92 | |||
Description
General part information
HLG-80H Series
1.5A 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
