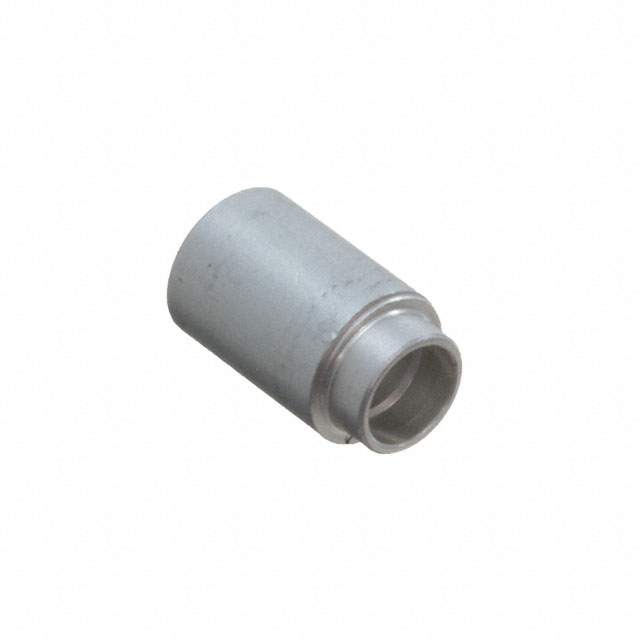

M0942-A-3-AL-7
ActiveRAF Electronic Hardware
6MM RD X 8MM X 3.2MM ID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsM0937-M0959 Cut Sheet
M0942-A-3-AL-7
ActiveRAF Electronic Hardware
6MM RD X 8MM X 3.2MM ID
Deep-Dive with AI
DocumentsM0937-M0959 Cut Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0942-A-3-AL-7 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Color | Clear |
| Diameter - Inside [diameter] | 0.126 in |
| Diameter - Inside [diameter] | 3.2 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Swage, Female |
| Length - Overall | 9.9 mm |
| Length - Overall | 0.39 in |
| Material | Aluminum |
| Plating | Iridite |
| Screw, Thread Size | M3 |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.85 | |
| 5 | $ 1.54 | |||
| 10 | $ 1.39 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.09 | |||
Description
General part information
M0942 Series
Round Spacer Unthreaded M3 Aluminum 0.315" (8.00mm) Clear
