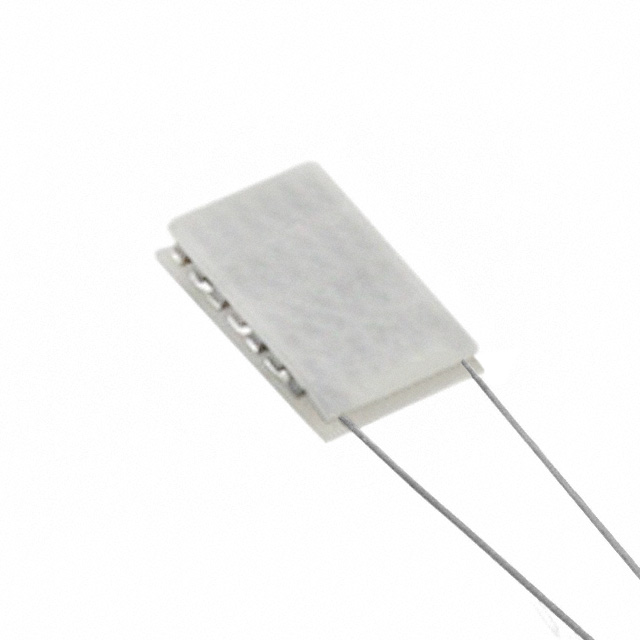

430540-501

Active

Laird Thermal Systems, Inc.

PELTIR ET19,23,F1N,0608,11,W2.24

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR ET19,23,F1N,0608,11,W2.24

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Resistance	Voltage - Max [Max]	Operating Temperature	Qmax @ Th	Height [z]	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Features	Delta Tmax @ Th
Laird Thermal Systems, Inc. 430540-501	1.9 A	1.26 Ohms	2.7 V	80 °C	3 W	1.65 mm	1	6 mm	8.2 mm	Lead Wires Non-Sealed	25 °C 65 °C
Laird Thermal Systems, Inc. 430540-502	1.9 A	1.92 Ohms	4 V	80 °C	4.5 W	1.62 mm	1	6 mm	8.2 mm	Lead Wires Non-Sealed	67 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 3.0W @ 25°C 1.9 A 80°C
