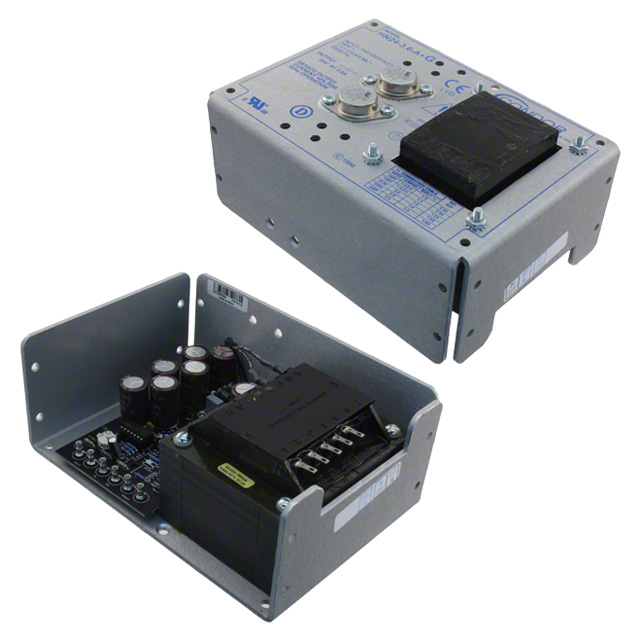

HN15-4.5-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 15V 68W
Deep-Dive with AI
Search across all available documentation for this part.
HN15-4.5-A+G
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 15V 68W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HN15-4.5-A+G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 4.5 A |
| Efficiency | 55 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 68 W |
| Size / Dimension [x] | 7 " |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [y] | 4.88 in |
| Size / Dimension [y] | 124 mm |
| Size / Dimension [z] | 2.75 in |
| Size / Dimension [z] | 69.9 mm |
| Type | Linear |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 155.57 | |
| 5 | $ 150.01 | |||
| 20 | $ 147.79 | |||
Description
General part information
HN15-4.5 Series
Linear AC DC Converters 1 Output 15V 100 ~ 240 VAC Input
Documents
Technical documentation and resources
