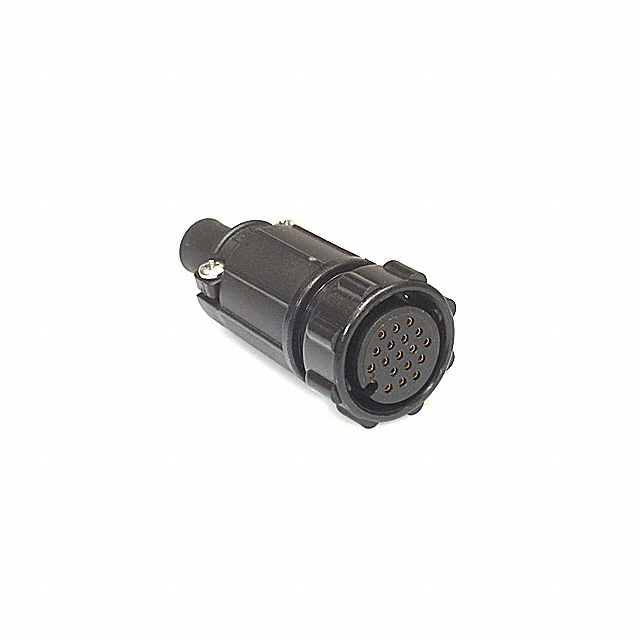

13282-18SG-326

Active

Conxall/Switchcraft

CONN PLUG FMALE 18P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 18P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Orientation	Mounting Type	Contact Finish - Mating	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Ingress Protection	Backshell Material, Plating	Features	Number of Positions	Primary Material	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 13282-18SG-326	Black	Keyed	Free Hanging (In-Line)	Gold	Female Sockets Plug	600 V	-40 °C	115 °C	Brass	Unshielded	0.26 in	7.62 mm	0.3 in	6.6 mm	Weathertight	Nylon Polyamide (PA)	Backshell Cable Clamp	18	Plastic	Bayonet Lock
Conxall/Switchcraft 13282-18SG-321	Black	Keyed	Free Hanging (In-Line)	Gold	Female Sockets Plug	600 V	-40 °C	115 °C	Brass	Unshielded					Weathertight	Nylon Polyamide (PA)	Backshell Cable Clamp	18	Plastic	Bayonet Lock	0.21 in	5.33 mm	6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 26.65

General part information

18 Position Circular Connector Plug, Female Sockets Solder Cup
