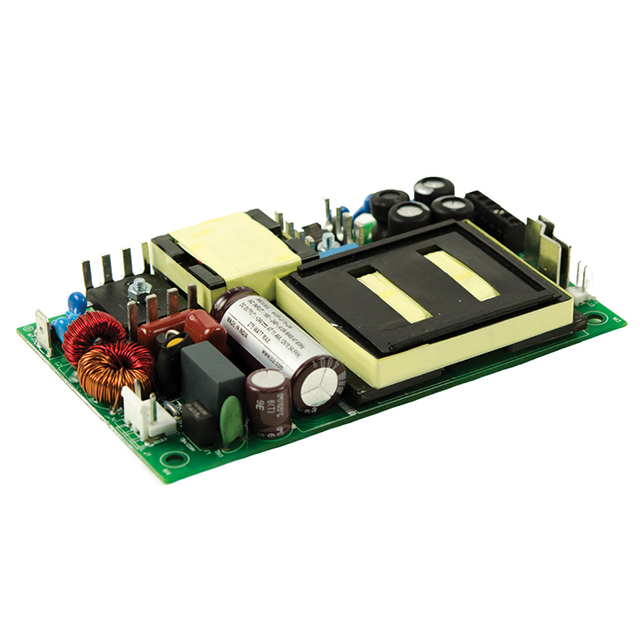

VMS-275-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 160W

Deep-Dive with AI

Search across all available documentation for this part.

VMS-275-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 160W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-275-48

Applications	Medical
Approval Agency	TUV, CB Scheme, UL, FCC, IEC, EN
Current - Output 1	3.33 A
Efficiency	92 %
Features	Standby Output, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	160 W
Power (Watts) [Max]	275 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.1 mm
Standard Number	61000-3-2, 61000-3-3, 55011 Class B, 60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4.2 kV
Voltage - Output 1	48 V

VMS-275 Series

Part	Current - Output 1	Efficiency	Mounting Type	Applications	Approval Agency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Number of Outputs	Type	Voltage - Output 1	Power (Watts) [Max]	Power (Watts)	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
CUI Inc. VMS-275-12-1	13.33 A	88 %	Chassis Mount	Medical	CB Scheme EN FCC IEC TUV UL	Adjustable Output PFC Standby Output Universal Input	264 VAC	80 VAC	4.2 kV	1	Open Frame	12 V	275 W	160 W	55011 Class B 60601-1 61000-3-2 61000-3-3	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "
CUI Inc. VMS-275-48	3.33 A	92 %	Chassis Mount	Medical	CB Scheme EN FCC IEC TUV UL	Adjustable Output Standby Output Universal Input	264 VAC	80 VAC	4.2 kV	1	Open Frame	48 V	275 W	160 W	55011 Class B 60601-1 61000-3-2 61000-3-3	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "
CUI Inc. VMS-275-48-1	3.33 A	92 %	Chassis Mount	Medical	CB Scheme EN FCC IEC TUV UL	Adjustable Output PFC Standby Output Universal Input	264 VAC	80 VAC	4.2 kV	1	Open Frame	48 V	275 W	160 W	55011 Class B 60601-1 61000-3-2 61000-3-3	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "
CUI Inc. VMS-275-15	10.67 A	88 %	Chassis Mount	Medical	CB Scheme EN FCC IEC TUV UL	Adjustable Output PFC Standby Output Universal Input	264 VAC	80 VAC	4.2 kV	1	Open Frame	15 V	275 W	160 W	55011 Class B 60601-1 61000-3-2 61000-3-3	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "
CUI Inc. VMS-275-24-1	6.67 A	90 %	Chassis Mount	Medical	CB Scheme EN FCC IEC TUV UL	Adjustable Output PFC Standby Output Universal Input	264 VAC	80 VAC	4.2 kV	1	Open Frame	24 V	275 W	160 W	55011 Class B 60601-1 61000-3-2 61000-3-3	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VMS-275 Series

Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
