A1100.11.120

Active

American Electrical Inc.

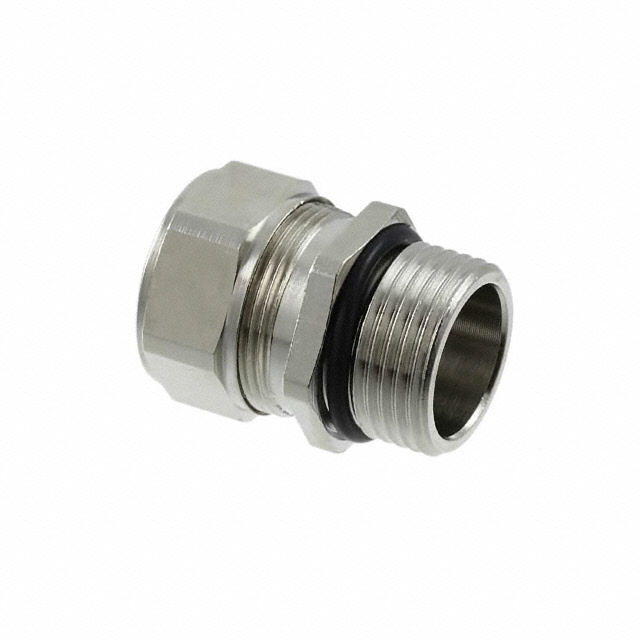

CABLE GLAND 8.5-12MM PG11 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAE 2014 Full Line Catalog Datasheet

A1100.11.120

Active

American Electrical Inc.

CABLE GLAND 8.5-12MM PG11 BRASS

Deep-Dive with AI

DocumentsAE 2014 Full Line Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A1100.11.120

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68, IP69K
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	8.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.335 in
Panel Hole Size	18.6 mm
Panel Hole Size	0.732 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG11
Type	Cable Gland

1100 Series

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Panel Hole Size	Panel Hole Size	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min)	Panel Hole Size
American Electrical Inc. A1100.09.060	0.236 in	6 mm	Silver	0.598 in	15.2 mm	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG9	0.177 in	4.5 mm	IP68 IP69K	10 mm	0.394 in
American Electrical Inc. A1100.16.150	0.591 in	15 mm	Silver	0.886 in	22.5 mm	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG16	0.433 in	11 mm	IP68 IP69K	10 mm	0.394 in
American Electrical Inc. A1100.10.040	0.157 "	4 mm	Silver			O-Ring Seal Strain Relief	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	M10x1.5	0.118 in	3 mm	IP68 IP69K	10 mm	0.394 in
American Electrical Inc. A1100.09.045	0.177 "	4.5 mm	Silver	0.598 in	15.2 mm	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG9			IP68 IP69K	10 mm	0.394 in	3.5 mm	0.138 in
American Electrical Inc. A1100.25.160	0.63 "	16 mm	Silver	0.984 in	25 mm	O-Ring Seal Strain Relief	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	M25x1.5	0.492 in		IP68 IP69K	11 mm	0.433 in			12.5 mm
American Electrical Inc. A1100.29.275	1.083 in	27.5 mm	Silver		1.457 in	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG29			IP68 IP69K	12 mm	0.472 in	23 mm	0.906 in		37 mm
American Electrical Inc. A1100.25.125	0.492 in	12.5 mm	Silver	0.984 in	25 mm	O-Ring Seal Strain Relief	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	M25x1.5	0.374 in	9.5 mm	IP68 IP69K	11 mm	0.433 in
American Electrical Inc. A1100.11.120	0.472 in	12 mm	Silver	0.732 in	18.6 mm	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG11	0.335 in	8.5 mm	IP68 IP69K	10 mm	0.394 in
American Electrical Inc. A1100.13.080	0.315 in	8 mm	Silver			O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG13	0.236 in	6 mm	IP68 IP69K	10 mm	0.394 in
American Electrical Inc. A1100.29.190	0.748 "	19 mm	Silver		1.457 in	O-Ring Seal	100 °C	-40 °C	Cable Gland	Brass Nickel Plated	PG29			IP68 IP69K	12 mm	0.472 in	16 mm	0.63 in		37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.83
		10	$ 7.08
		25	$ 6.69
		50	$ 6.52
		100	$ 6.20
		250	$ 5.55
		500	$ 5.22
		1000	$ 4.57

Description

General part information

1100 Series

Cable Gland Brass, Nickel Plated PG11 Silver

Documents

Technical documentation and resources

AE 2014 Full Line Catalog

Datasheet
