THS2510KJ

Active

TE Connectivity Passive Product

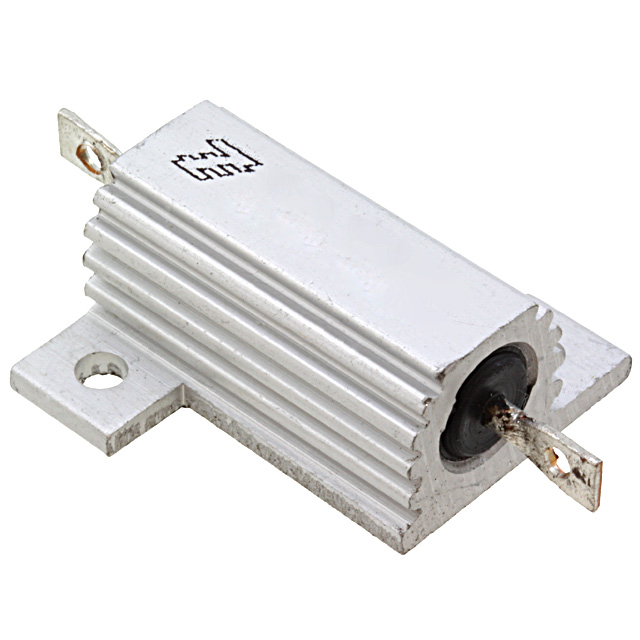

RES CHAS MNT 10K OHM 5% 25W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THS2510KJ

Active

TE Connectivity Passive Product

RES CHAS MNT 10K OHM 5% 25W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THS2510KJ

Coating, Housing Type	Aluminum
Composition	Wirewound
Height - Seated (Max) [Max]	15 mm
Height - Seated (Max) [Max]	0.591 "
Lead Style	Solder Lugs
Mounting Feature	Flanges
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Power (Watts)	25 W
Resistance	10000 Ohms
Size / Dimension [x]	29 mm
Size / Dimension [x]	1.142 inches
Size / Dimension [y]	1.102 in
Size / Dimension [y]	28 mm
Temperature Coefficient	30 ppm/°C
Tolerance	5 %

THS25 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Coating, Housing Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Resistance	Mounting Feature	Composition	Lead Style
TE Connectivity Passive Product THS255R0J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	5 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25R39J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	390 mOhms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25R22J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	220 mOhms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS2527RJ	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	27 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25R10J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	0.1 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS2510KJ	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	30 ppm/°C	-55 °C	200 °C	5 %	10000 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25560RJ	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	30 ppm/°C	-55 °C	200 °C	5 %	560 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25R82J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	50 ppm/°C	-55 °C	200 °C	5 %	820 mOhms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS251K0J	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	30 ppm/°C	-55 °C	200 °C	5 %	1000 Ohms	Flanges	Wirewound	Solder Lugs
TE Connectivity Passive Product THS25680RJ	29 mm	1.102 in	1.142 inches	28 mm	15 mm	0.591 "	25 W	Aluminum	30 ppm/°C	-55 °C	200 °C	5 %	680 Ohms	Flanges	Wirewound	Solder Lugs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.89
		10	$ 2.48
		25	$ 2.39
		40	$ 2.22
		100	$ 1.96

Description

General part information

THS25 Series

10 kOhms ±5% 25W Wirewound Chassis Mount Resistor
