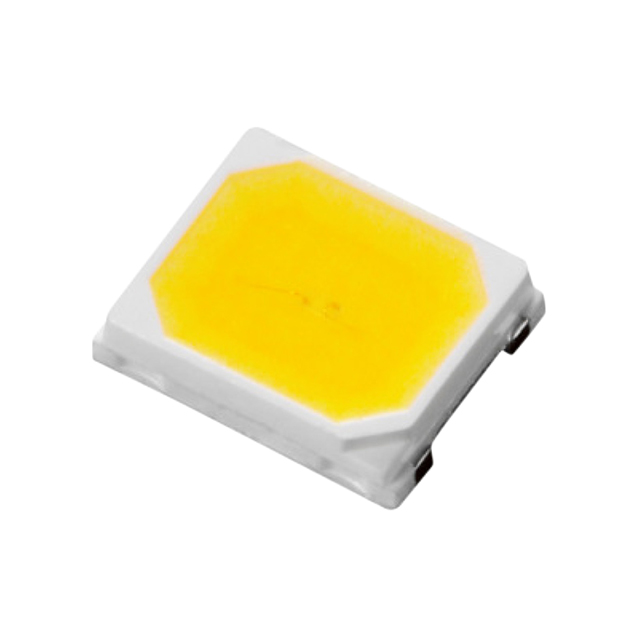

EAHC2835WD4
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5000K 2PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAHC2835WD4
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5000K 2PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAHC2835WD4 |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 180 mA |
| Current - Test | 150 mA |
| Flux @ 25°C, Current - Test | 66 lm |
| Flux @ 25°C, Current - Test [Max] | 76 lm |
| Flux @ 25°C, Current - Test [Min] | 55 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 142 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Thermal Resistance of Package [diameter] | 21 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.37 | ||
| 10 | $ 0.20 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.07 | |||
| Tape & Reel (TR) | 4000 | $ 0.07 | ||
| 8000 | $ 0.06 | |||
| 12000 | $ 0.05 | |||
| 28000 | $ 0.05 | |||
| 100000 | $ 0.04 | |||
Description
General part information
EAHC2835 Series
LED Lighting - White, Cool 5000K 3.1V 150mA 120° 1411 (3528 Metric)
Documents
Technical documentation and resources
