UTS78E33S
ActiveSouriau-Sunbank by Eaton

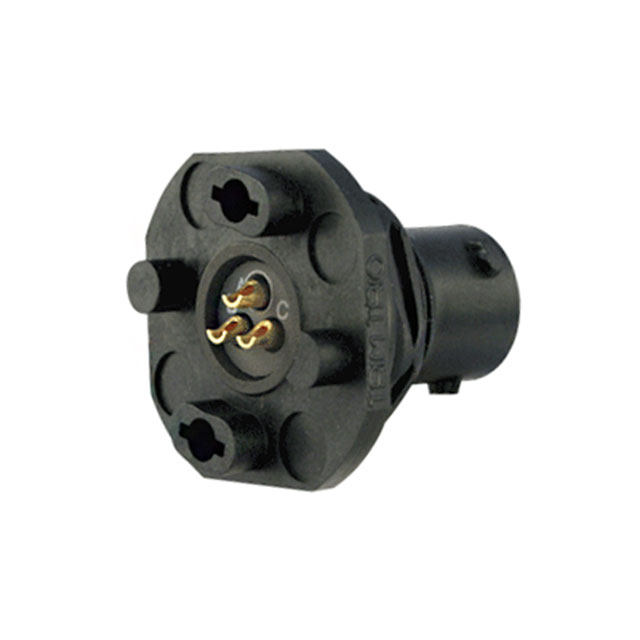

FEMALE JAM NUT RECEPTACLE WITH CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
UTS78E33S
ActiveSouriau-Sunbank by Eaton
FEMALE JAM NUT RECEPTACLE WITH CONTACTS
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS78E33S |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 8-33 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
UTS78 Series
| Part | Fastening Type | Mounting Feature | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Current Rating (Amps) | Contact Finish - Mating | Shielding | Orientation | Voltage Rating | Insert Material | Ingress Protection | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Material | Number of Positions | Color | Shell Size - Insert | Primary Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | 4 | Black | 8-4 | Plastic | ||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | Black | Plastic | 8 | 98 | ||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | Black | 8-33 | Plastic | |||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | Black | 8-3 | Plastic | Solder | Panel Mount Through Hole | |||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | Board Lock UV Resistant | 16 Áin | 0.41 Ám | Receptacle Female Sockets | Brass | 4 | Black | 8-4 | Plastic | Solder | Panel Mount Through Hole | ||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Receptacle Female Sockets | Brass | 2 | Black | 8-2 | Plastic | ||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Receptacle Female Sockets | Brass | Black | 8-33 | Plastic | |||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | 2 | Black | 8-2 | Plastic | ||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Receptacle Female Sockets | Brass | Black | Plastic | 8 | 98 | ||||
Souriau-Sunbank by Eaton | Bayonet Lock | Bulkhead - Front Side Nut | UL94 V-0 | -40 °C | 105 ░C | Energy Instrumentation Lighting Telecommunications | 7 A | Gold | Unshielded | N | 250 VDC | Polychloroprene | IP68 IP69K | UV Resistant | 16 Áin | 0.41 Ám | Male Pins Receptacle | Brass | Black | Plastic | 8 | 98 | Solder | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UTS78 Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
