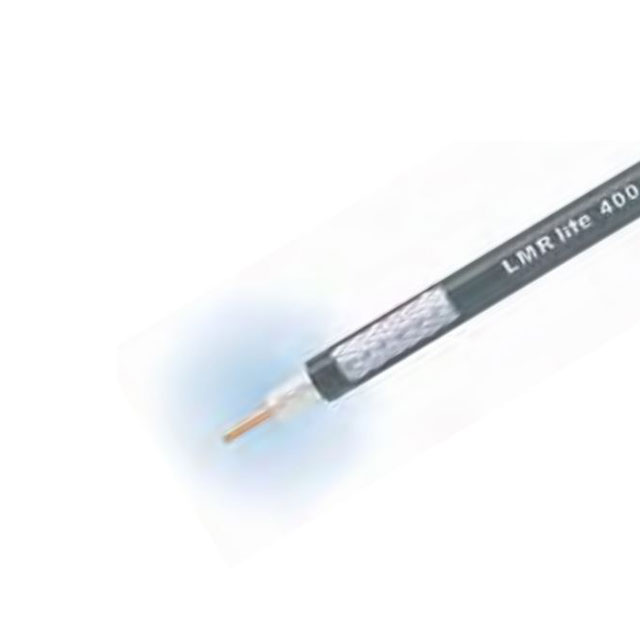

LMR-LW400

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUM BRAID FOOT

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

STANDARD CABLE, ALUM BRAID FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-LW400

Cable Type	Coaxial
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Aluminum
Shield Type	Braid
Spool Size	500 '
Spool Size	152.4 m
VoP, Velocity of Propagation	84

Part	Shield Type	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Dielectric Material	Impedance	Length	Operating Temperature [Max]	Operating Temperature [Min]	VoP, Velocity of Propagation	Conductor Strand	Shield Material	Jacket Color	Conductor Material	Spool Size	Spool Size	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]
Amphenol Times Microwave Systems LMR-LW400	Braid	Coaxial	10.29 mm	0.405 in	Polyethylene (PE)	Foam Polyethylene (FPE)	50 Ohms	Enter Number of Feet in Order Quantity	85 °C	-40 °C	84	Solid	Aluminum	Black	Aluminum Copper Coated	500 '	152.4 m	7.24 mm	0.285 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
